500t/h Iron ore Jaw Crusher price in Zambia

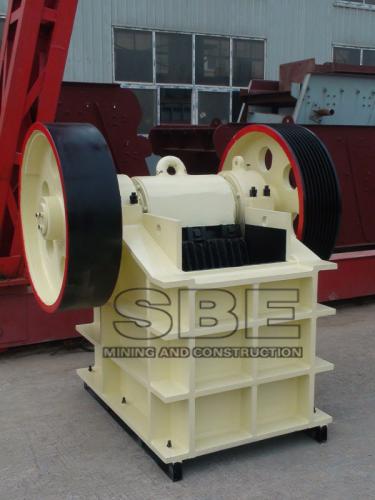

Jaw crusher main frame, movable jaw, eccentric shaft, jaw, elbow board and other component parts, motor rotates the eccentric shaft through V-belt, so that the jaw has been adjusted by a good track motion, so that the crushing cavity the material crushing.

Rack-based single unitary cast steel structure, the front wall coat rack helpful wedge bolt fixed jaw plate on the frame around the side wall of the crushing chamber equipped with side guards to prevent wear of the side wall of the rack.

Movable jaw member is a molded steel front with movable jaw plate, the upper portion by the eccentric shaft and roller bearings hanging on the rack, lower support plate in the elbow, and a rolling contact with the bracket, two eccentric shaft end of mounted flywheel and pulley.

The other end of the support bracket to adjust the seat, and in rolling contact bearings, brackets in addition to playing the role of supporting the movable jaw, in the case of foreign not broken material into the crushing chamber, the unit plays a sudden increase in load the role of insurance, that is their own fault quickly, while protecting other parts from damage.

Adjust the seat installed in the racks on both sides of the chute, and close with the tone wedge, when the nesting population need to be adjusted with a wrench clockwise, align the wedges immediately rise, alignment along the seat forward mobile, the discharge opening from large to small, from small to large and vice versa becomes.

Jaw crusher is mainly used for a variety of ores and bulk materials of medium-grained broken. Jaw Crusher (broken jaw) is widely used in mining, smelting, building material, highway, railway, water conservancy and chemical industries. Maximum compressive strength of the material to be broken for 320Mpa.
Jaw crusher working principle
Jaw Crusher (broken jaw) work song moving extrusion type, jaw crusher working principle is: motor-driven belt and pulley, through the eccentric shaft to move the jaw up and down movement, rises when moving jaw toggle plate and moving jaw the angle between the larger, thus promoting the movable jaw plate close to the fixed jaw plate, simultaneously with the material being crushed or split pieces to achieve the purpose of crushing; when moving jaw down, the angle between toggle plate and moving jaw smaller, movable jaw plate under the action of the rod, spring, away from the fixed jaw plate, then the crushed material from the crushing chamber discharge port. With the continuous rotation of motor broken motor jaw for periodic motion crushing and waste material, to achieve mass production.
Jaw Crusher Features
1 crushing chamber depth and no dead zone, increase the feed capacity and output;
2. its crushing ratio, uniform particle size;
3. Gasketed nesting population adjustment device, reliable and convenient, adjustment range, increase the flexibility of the device;
4. The lubrication system is safe and reliable, easy to replace parts, small maintenance workload;
5. The structure is simple, reliable, low operating costs.
6. The energy-saving equipment: stand-alone energy-saving 15% to 30%, more than double the energy-saving system;
7. nesting population adjustment range, to meet different user requirements;
8. Low noise, less dust.

I produced good quality rotary kiln, cheap, very suitable for medium and small manufacturers use, and that the company also produces a variety of crushing equipment, sand making equipment, such as: jaw crusher, at the international level have a pretty good feedback, I trust oriented. Welcome customers to buy. Website is:HENAN SHIBO
