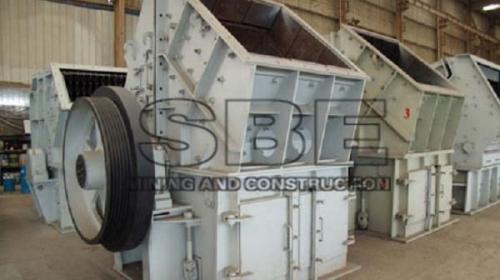

125t/h Sedimentary rocks Impact Crusher East Timor

Impact Crusher is my company developed efficient crusher, the product is suitable for various materials 250MPa compressive strength of not more than the coarse, medium, fine job, has a unique structure, easy operation, high efficiency, product shape a cube, the discharge grain size is adjustable, selectable crushing, simplify crushing process, cost savings and other characteristics. There are large-scale models to replace the hammer lifting special tools for the user matching.
Nesting size: 25-50 (mm)
Production capacity: 46-670 (t / h)
Application: widely used in cement, building materials, chemical industry, metallurgy, water, electricity, highways, high-speed rail and other industries artificial aggregate crushing operations.
Applicable materials: especially suitable for construction aggregate hydropower engineering and other special industries, such as broken basalt, andesite, river gravel, granite and other materials.
Vortex crushing cavity and P-stage crushing zone I produced the crusher is mainly composed of the rack (left and right) consisting of a lower frame, a rotor, a first adjusting unit (S crushing), the second adjustment section (T broken segments) and the drive unit components.
Crusher works:
After V-belt drive motor to drive the rotor at high speed, the material from the feed inlet into the crusher chamber, the high-speed rotation of the rotor plate hammer blow, impact crusher scroll to the top of the tooth cavity back plate rebound after a free-fall, with continued follow-up material impact carom broken up, not fully broken tremendous pressure and bending forces chunks and feed at the top of the crushing chamber P thick tooth plate and plate hammer generated, even if the material is also very difficult to break easily be crushing after entering the next segment S crushing chamber. Toothed crushing chamber liner with a smaller gap between the rotor plate hammer, impact of friction material on this subject, broken, crushed and broken to get into T crushing chamber crushing.
T crushing chamber liner with toothed rotor hammer plate gap between the smaller, the same material by friction shocks, broken, crushed and further crushing after discharge outside the machine.
Toothed crushing chamber liner with a gap between the rotor plate hammer can be adjusted according to user requirements for different material size. After the T-type crushing chamber with elastic means, when the non-broken material into the crushing chamber T, the resilient means having a concession cushioning effect nesting population increased in size, can not be broken material from the plane. When the exhaust can not be broken in spring action to restore the original size of the discharge opening.
Crusher performance characteristics:
1. The unique design of the aircraft structure, tall vortex crushing chamber and three-stage crushing area, so higher crushing efficiency, greater productivity.
2. Using the coupling sleeve has a key rotor body, insert the installation of efficient wear plates hammer tooth counterattack liner unique, multi-faceted door frame, screw or hydraulic opening device, so that the equipment replacement of wearing parts, maintenance more convenient.
3. Compact machine rigidity, the rotor has a large moment of inertia;
4. The high chromium plate hammer, impact resistance, abrasion resistance, impact force;
5. keyless access, easy maintenance, economical and reliable;
6. crushing full-featured, high productivity, small mechanical wear, high overall efficiency.

I produced good quality rotary kiln, cheap, very suitable for medium and small manufacturers use, and that the company also produces a variety of crushing equipment, sand making equipment, such as: jaw crusher, at the international level have a pretty good feedback, I trust oriented. Welcome customers to buy. Website is:HENAN SHIBO
