同時5軸制御のマシニング系超精密加工機

Machining system ultra precision processing machine with simultaneous 5 axis control, for automobile and watch related processing

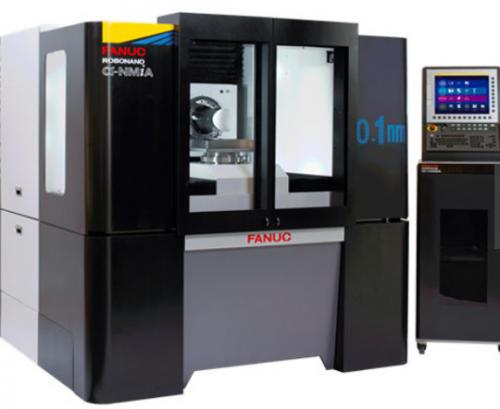

On April 16, 2018, FANUC announced machining super-precision processing machine "ROBONANO α-NMiA". Simultaneous 5-axis control can be performed using CNC and servo control technology, milling with rotary tool, pulling with non-rotating tool is supported.

Robonano α-NMiA is suitable for automobile and watch-related machining, and can handle A4-sized workpieces in order to cope with upsizing of molds for automobile optical parts such as head-up display molds and head lamp molds.

By adopting oil bearing, rigidity is improved compared with the conventional machine using air bearing. The oil bearing adopted a non-contact bearing, and the damping property was also improved by a smooth drive without solid friction.

Although the conventional machine was 1 nm command and control, applying 0.1 nm command and control by the company's latest CNC, servo control technology. Surface roughness improved, surface quality was improved, polished specular surface became possible only by cutting (CNC stepping motor).

The iHMI display is adopted as a special operation screen. Since the screens of various measuring devices used for setup of machining can be captured, observed and operated, it is unnecessary to provide a plurality of monitors and wiring.
