USB Signal Slip Ring
by Arica James JINPAT Electronics is a professional slip ring manSlip ring is a kind of rotary joint which could connect two equipments to transfer signal during 360 degree rotation. Slip ring can transmit many different signals, for example, Inter Bus, Can-bus, Profibus, RS422/485 and so on, especially for USB signal. USB signal slip ring is specifically designed for USB signal transmission, which can be used to transmit USB2.0, USB3.0 signal and is compatible downward, with stable transmission, high rate, no packet loss, no error code, it is widely used in measurement and control, automation, signal acquisition and other fields.

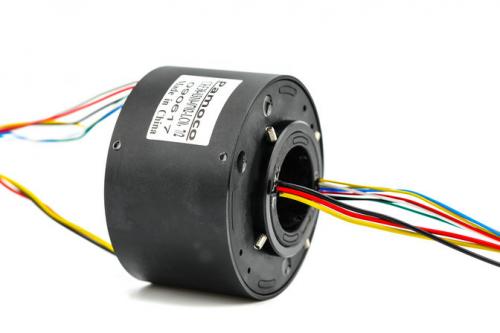

INPAT has developed and researched big diameter slip ring that can pass USB2.0 signal, our 70mm through bore type has been tested successfully at present.
Electrical performance of USB signal slip ring:
Rated voltage: 380VAC/DC
Rated current：5A,10A,15A/ per circuit or higher
The compressive strength: between the two≥100/span>
Mechanical performance of USB signal slip ring:
LEAD WIRE: UL Teflon wire
protection grade: IP54 or higher
environmental parameters: working temperature: -20 ~ 60
There are many types of signals that can be transmitted by JINPAT conductive slip ring, such as Ethernet, USB, RS, CANbus, FireWire, servo motor signal, encoder signal etc.
