Pancake Slip Ring

by Arica James JINPAT Electronics is a professional slip ring man

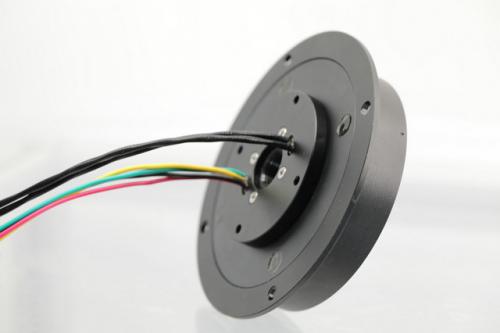

Pancake slip ring including stator, rotor and shrapnel, One end of the shrapnel is connected with the stator, and the other end of the shrapnel is in contact with the rotor, and the mounting holes are respectively arranged on the stator and the rotor, so as to install the pancake slip ring on the equipment, and the rotor is welded with wires. The compact pancake slip ring is extremely limited in height space and needs to transmit current between the rotating platform and the stationary platform. The precise equipment of the signal provides an effective solution.

Pancake slip ring can be divided into two type of separate disc and integral disc, their structural materials are different, This series of products combined with PCB design, low current and signal transmission using gold to Gold Multi contact structure, It is well known that the pancake slip ring has the advantage of thinner thickness relative to the through hole slip ring, However, the pancake slip ring can only develop in radial direction because it is not integrated in axial direction.

As a result, the ordinary pancake slip ring, though thin in thickness, actually becomes very large in diameter, This problem is not only troubling customers, but also common slip ring manufacturers. However, after the unremitting efforts of the special research and development engineer, we have introduced Ultra Miniature pancake slip ring, it makes the conductive slip ring fine, small, light and thin upgraded to a higher level.

Typical application

Industrial machinery - processing center,

Rotary table, lifting equipment tower, Reel wheel, test equipment, packaging machinery, pallet Machine, CNC machine

Magnetic driver, process control equipment, rotary sensor, emergency lights, machines, radar

Manufacturing and control equipment

Exhibition / display equipment

Medical equipment
