India's Trusted Manufacturers & Exporters Of Constant Force Spring, Copper Flex Bars, Brass & Copper

by Jayesh Shah Manufacturer and Exporters of Metal Bars and Compo

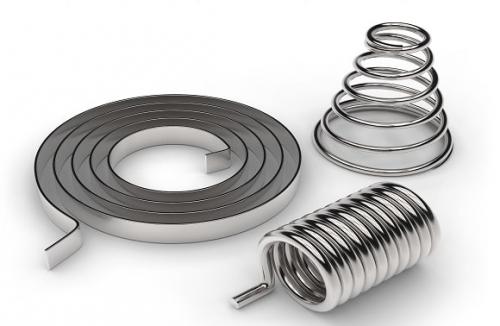

Nexim Alloys is the primary manufacturers, stockists, supplier & exporter of Constant Force Spring.Consistent Force springs are an extraordinary variety of enlargement spring. They involve a twisting of strip material with manufactured incurvature. Right when the strip is widened the common weight contradicts the stacking power, correspondingly as in a run of the mill development spring, yet at an about steady rate. A constant force Spring is an excellent device for applications where a constant load is required. These Constant Force spring have its application in cable retractors, door closers, tool head returns, cabinet furniture component, electric motors, appliances and more. These Spring are made using best quality raw material and do match national & international quality standard and this helps us to have high demand in the market from our customers. When it comes to packaging it is done with tremendous care because we know the challenges faced while import & export of product hence we see through it that the products are delivered in good conditions without any harm to it. These Springs are made in different size, dimension & thickness & are delivered to customers as per their need & requirement.


Visit here to know more : http://neximalloys.com/constant-force-spring-manufacturers-exporters-suppliers-stockists.html

Specifications :

MaterialStainless Steel 301, High Carbon Steel Sizes
UsageGarage, Electrical Connection, Earthing, Fire Damper, Railway Window, Industrial
Dimensionthickness 0.005 to 0.70mm width 3.00 to 35.mm

Guide to Mounting Constant Force Spring :

A Constant Force Spring is usually mounted by first tightly wrapping it on a drum, then attaching the free end to the loading force such as in a counterbalance application. This relationship can also be reversed.

  • The drum diameter should be 10% to 20% larger than its natural inside diameter.
  • One and one-half wraps should remain on the drum at maximum extension.
  • The strip becomes unstable at long extensions and should be guided to prevent twisting or kinking on recoil.
  • Idler pulleys must be larger in diameter than the natural diameter and should never be used to cause back-bending against the natural radius of curvature.

Belt webbing, tape measures and dog leads, seat recliner, window regulator mechanisms etc.

Diameter.10 to 6.00 in2.54 to 152.4 mm
Free Length.25 to 120 inch6.35 to 3048 mm
Wire Size.010 to .375 in.254 to 9.525 mm
Direction of WindingRight HandLeft HandOptional
Loop TypesMachine HooksExtendedSingle Full Loop
Side HooksCross OverDouble Full Loop
MaterialBeryllium CopperMusic WireInconel
Chrome SiliconChromium VanadiumPhosphor Bronze
Stainless Steel 302Stainless Steel 304Stainless Steel 316
FinishPlainBlack OxidePainted
CadmiumPassivateZinc Gold
Zinc Silver
