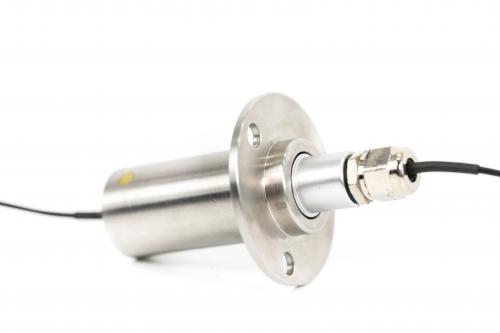

Multi-channel Slip Ring with High Current

by Arica James JINPAT Electronics is a professional slip ring man

A slip ring is used for transmitting power and signals. Slip rings manage the transmission from a rotating to a stationary device. In electrical engineering slip rings often are used as components and assemblies, there is a common number of channels 1-36 channels. With the continuous development of industry, the machine is more and more complicated, the number of slip ring requirements are constantly increasing, multi-channel slip ring can meet this demand.

The multi-channel slip ring by JINPAT have many advantages:
1. Designed for the simultaneous transmission of various complex power supplies and signals;

2. Compatible with high current, optical signal, fluid medium;

3. Anti interference design, signal transmission without noise;

In a very compact volume integrated multi-channel fiber and signal, current, to solve the need for complex system structure simplification

4. Super multi-channel simultaneous transmission, the signal is extremely stable

5. High integration slip ring integrated with optical fiber, Ethernet and electronic control

The typical application of lithium equipment rotary table, test equipment, industrial robots.

JINPAT engaged in research and development of electronic slip ring, The Capsule Slip ring channel can up to 125 wires, the number of channels through bore slip ring channel can up to 300 or even higher, while the power ring, signal ring, hybrid signal, fiber and hybrid signal, high-frequency signal is mixed with the power can be achieved.
