High Frequency Slip Rng

by Arica James JINPAT Electronics is a professional slip ring man

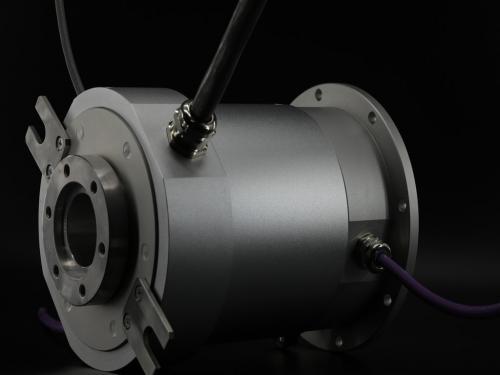

High frequency slip ring is a product developed specially for the transmission of high speed serial digital signal or analog signal. The maximum transmission rate of up to 40GHz. This series of products support single or multi-channel high-frequency signal transmission, and also can support high frequency signal and 24V control signal, communication signal, power supply, fluid medium hybrid transmission. High frequency signal is 50 Ω characteristic impedance rf coaxial structure.

With the continuous development of science and technology, mounting high-frequency signal equipment is needed to transmit, some equipment need to rotate and transmit high frequency signals, the most important part of such equipment is high-frequency signal slip ring. The high frequency slip ring has a great effect on the whole signal transmission device, just like the heart, so the signal transmission equipment needs high frequency slip ring. The quality requirements of this high frequency slip ring are very high, In order to meet the needs of these equipment, JINPAT mechanical and electrical researchers through constant efforts to develop a variety of environment adapted to the various high-frequency slip ring. Which fully meet the use requirements of these signal transmission equipment for high-frequency slip ring.

High frequency slip ring by JINPAT is general use of military radar antenna, multi axis 3D space simulator, COTM, antenna turntable with RF signal, supporting 1080p, 1080i, HD-SDI HD turntable etc. This type of slip rings can also transmit analog signals and high-speed digital signals with frequency up to 500MHz—50GHz. This series of slip ring has excellent performance with ultra-low signal attenuation loss and transmission fluctuation.

Please contact us to recommend you suitable product and customization design.
