How to Tear Down the Huawei P30 Lite to Replace the Loudspeaker

by Arvin Apsen Cell phone repair parts

Huawei P30’s loudspeaker is on the bottom side of the phone body. This is a replaceable part that can be taken off by tearing down the battery door. Here Etrade Supply will demonstrate the process on how to tear down the Huawei P30 Pro for loudspeaker replacement. Hope this could be useful to you if you like smartphone repair.


1. Tear down the battery door and remove the wireless charging coil

Power off the phone firstly. Eject and take out the SIM card tray. Use hot air gun to blow the battery door edge and each corner with 40℃. Separate and take off the battery door with suction cup pulling and ultra-thin plastic sheet slicing. Gently pry and remove the battery door. Tear off the battery door adhesive glue on the frame, unbolt and remove the ten screws for fixing the wireless charger. Pry and take off the wireless charger module from the phone.

2. Take down the loudspeaker and replace the new one

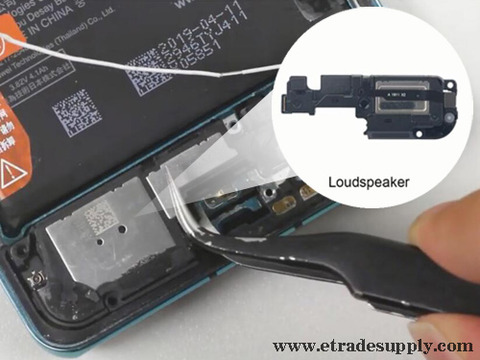

Disconnect the battery flex cable first, then loosen the seven screws on the bottom. Remove the metal panel for fixing the charging port PCB board. Disconnect the loudspeaker flex cable, and unplug the signal wire cable from the loudspeaker module. Pry and take off the loudspeaker from the phone with tweezers. Place the new Huawei P30 Lite loudspeaker onto the original place. Connect the flex cable and the signal wire port on it. Place the metal shield and fix the loudspeaker with the seven screws. Connect the battery flex cable back, install the wireless charger, and fix it with the ten screws on it.

3. Test the new loudspeaker and assemble the phone

Turn on the phone and test the new loudspeaker function. Try to play music or video and volume up to check if it is OK. Turn off the phone again. Clear off the reminding adhesive glue on the battery door. Apply a new batter door adhesive tape on the frame. Make sure the position is right, tear off the PVC protector, and assemble the Huawei P30 Lite battery door back on to the phone. Slightly press to make sure it is closely sealed. Insert the SIM card tray back. All process is finished.


The process demonstrated above is about how to replace Huawei P30 Lite loudspeaker, it also works on other Huawei P30 series. The Huawei P30 battery door is easy to be broken and it requires our patience and carefulness during the procedure. Anyway, you may leave your message to us if you have questions about Huawei repair, or go to Etade Supply for Huawei P30 series such as Huawei P30 Pro parts and components if you are interested.
