Beneficiation spiral classifier
Introduction:

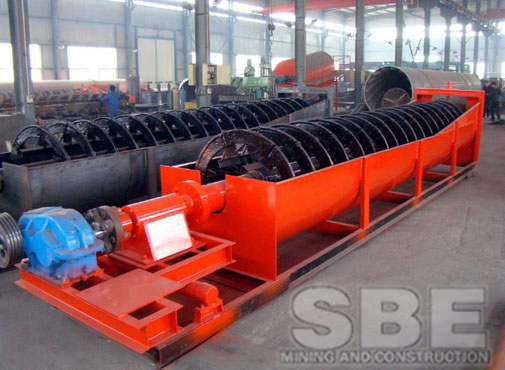

Spiral classifier is widely used in mineral processing plant, ball mill to form a closed loop mode splitting mineral sands, or gravity concentration for grading ore and fine mud, or in the process of beneficiation and slurry size fractionation off the mud, dehydration washing operation and other operations. It has a simple structure, reliable, easy to operate
Mineral Processing Spiral Classifier for sale
Depending on the number of spiral, spiral classifier, spiral classifier can be divided into single and double spiral classifier; depending on the depth of immersion overflow surface of the spiral blade, it can be divided into high weir type and type of immersion.
Conical centrifuge air classifier. Centrifugal air classifier cone under the action of centrifugal force, to achieve the separation of coarse and fine. The device is the smallest product size up to about 0.95um, classification accuracy D75 / D25 can reach 1.16. The device has no moving parts, the guide vane angle can be adjusted between 7 to 15 degrees, equipment, compact structure, high efficiency grade, safe and reliable operation.
MS impeller grader. MS impeller grader was developed in Japan and produced standard shape classifier, Figure 1 is a schematic diagram of the aircraft. The machine is characterized by the gas stream after the powder into the classifying chamber separated at wind screen role secondary air, fine particles in the classification zone classification round of high-speed rotation powerful centrifugal field and classifier rear exhaust generated by the centripetal force dual role, the centripetal force is greater than the centrifugal force due to fine particles, fine particles and discharged from the discharge port, opposite the centrifugal force due to large coarse, coarse and discharged from the discharge port.
