Fireproof PU Coated Fiberglass Cloth
Fireproof PU Coated Fiberglass Cloth: A Cost-Effective Solution for Thermal and Flame Insulation
Introduction
Fireproof PU (polyurethane) coated fiberglass cloth is a reliable industrial textile designed for thermal insulation, fire curtains, and smoke control systems. By combining a strong fiberglass base with a flame-retardant polyurethane coating embedded with aluminum pigment, this fabric offers both durability and excellent resistance to high temperatures.
What is Fireproof PU Coated Fiberglass Cloth?
This material is made by coating fiberglass fabric with a specially formulated polyurethane layer that includes aluminum pigment. The result is a lightweight, flexible, and flame-retardant fabric with excellent resistance to water, wear, and high heat.
Key Features
-
High Flame Retardancy: Withstands continuous temperatures up to 550°C.
-
Waterproof and Slip-Resistant: The PU coating protects against moisture and enhances safety.
-
Easy to Handle: Lightweight (450g/m²), easy to cut and install for custom insulation solutions.
-
Low Smoke Emission: Rated Class 0, BS476 Part 6&7, and EN13501-1 A2 S1 D0.
-
Customizable Colors: Available in multiple colors based on user specifications.
Applications
Fireproof PU-coated fiberglass cloth is widely used in:
-
Fire Curtains & Smoke Curtains – In commercial buildings, theaters, and airports.
-
Welding Blankets – In the automotive, shipbuilding, and construction industries.
-

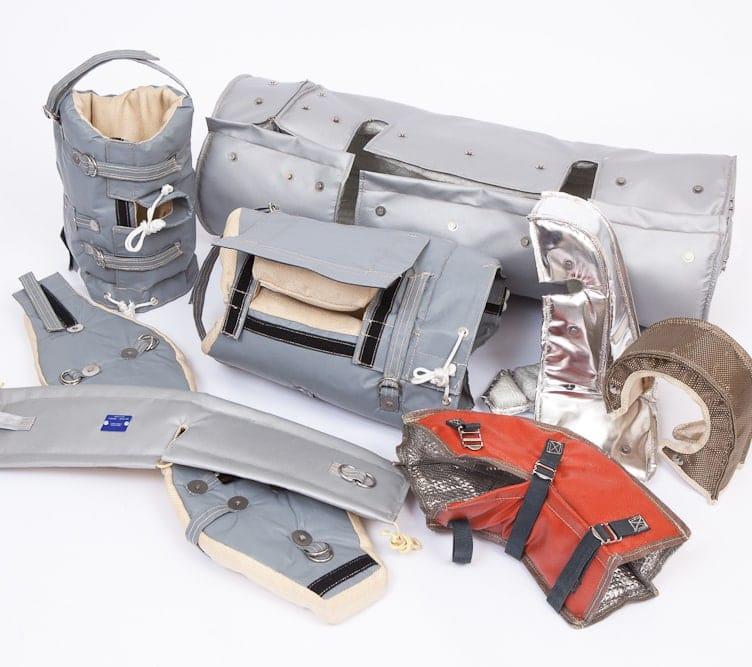

Removable Insulation Covers – For engines, ductwork, turbines, and HVAC units.
-
Thermal Insulation Jackets – Protecting critical components from heat loss and fire hazards.
Specifications at a Glance
| Property | Specification |
|---|---|
| Weight | 450g/m² ±10% |
| Thickness | 0.4mm |
| Base Fabric | Fiberglass, Satin Weave |
| Coating | Single-Side PU with Aluminum Pigment |
| Temperature Resistance | Up to 550°C |
| Roll Width Options | 1000mm, 1200mm, 1500mm |
Comparison: PU Coated vs. Silicone Coated vs. Vermiculite Coated Fiberglass Cloth
| Feature | PU Coated | Silicone Coated | Vermiculite Coated |
|---|---|---|---|
| Max Temp | 550°C | 260°C | 1000°C |
| Waterproof | ✅ Yes | ✅ Yes | ❌ No |
| Flexibility | ✅ High | ✅ Medium | ❌ Low |
| Cost | Affordable | Medium | Expensive |
| Ideal Use | Fire Curtains, Welding Blankets | Expansion Joints, Bellows | High-Temp Furnaces |
SEO Keywords
-
PU coated fiberglass cloth
-
Fireproof fiberglass fabric
-
Thermal insulation fabric
-
Welding blanket material
-
Smoke curtain material
-
Flame retardant coated fiberglass
Conclusion
PU coated fiberglass cloth is a versatile and affordable material for light to medium fire insulation needs. Its flame retardant, waterproof, and flexible nature makes it ideal for fire curtains, welding blankets, and insulation jackets. Available in various widths and customizable finishes, it's an essential solution for modern industrial and fire safety applications.
