Solution to Xhorse VVDI2 not connected by OBD2 error

by Xing Tu sales manager

Offer DIY solution to the error that Xhorse VVDI2  is not connected by OBD2.

Thanks to jodge (DK Veteran).



Error:

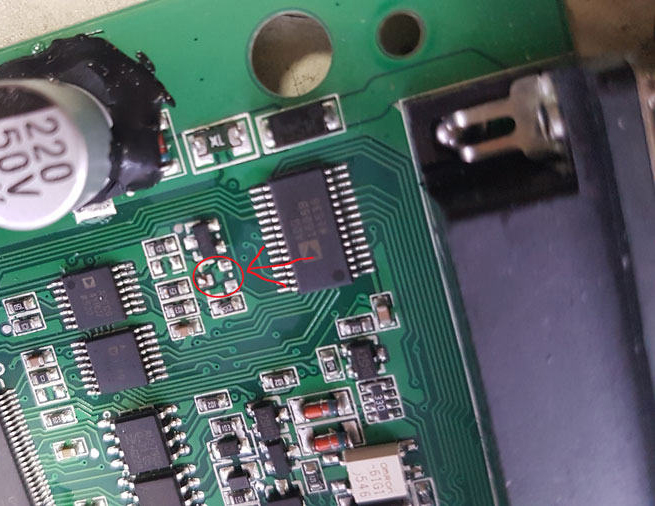

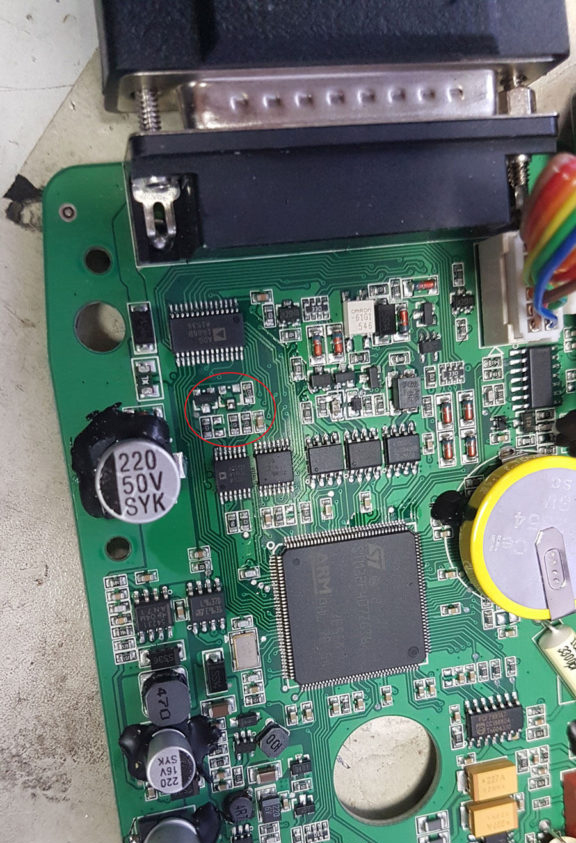

VVDI2 is no longer connected by OBD2, it has been short to negative.

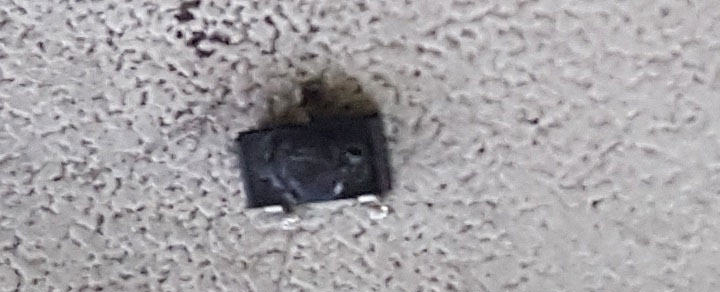

This component was burned (make smoke), I took it and at least UDS protocol is working, I did not test in Kline

f:id:maketrust2016:20190617102213j:plain

f:id:maketrust2016:20190617102226j:plain

f:id:maketrust2016:20190617102310j:plain





jodge’s solution:

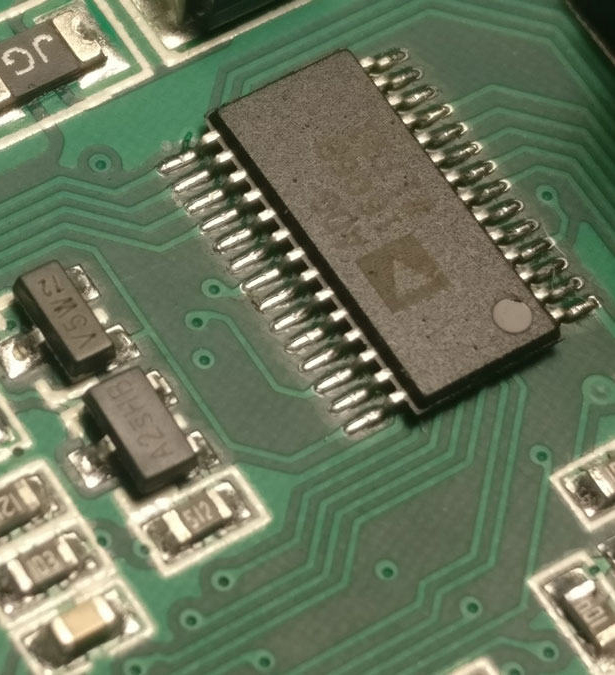

Please replace A2SHB component.

f:id:maketrust2016:20190617102324j:plain





Part Number : A2SHB

Function : N-Channel 1.25-W, 2.5-V MOSFET

Package : SOT23 Type

Manufacturers : Vishay, NXP

Image :

f:id:maketrust2016:20190617102337j:plain





Description

N-channel enhancement mode field-effect transistor in a plastic package using TrenchMOS technology.

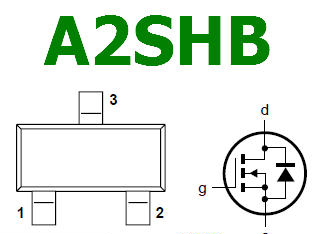

Pinout

f:id:maketrust2016:20190617102353j:plain





Features

  1. TrenchMOS™ technology
    2. Very fast switching
    3. Logic level compatible
    4. Subminiature surface mount package.

Application

  1. Battery management
    2. High speed switch
    3. Low power DC to DC converter.
