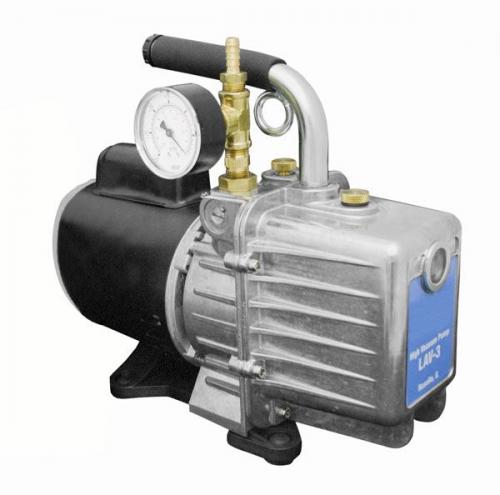

High vacuum pump

Processing and chemical require dependability and high efficiency. The high vacuum pump is necessary including home distillation, evaporation, crystallization, drying, mold restoration or vacuum, deodorization, and filtration. Dry vacuum pumping provides benefits for these programs and it is a practical and viable alternative to pumping technology that is wet. As a device, there are safety conditions that need to be taken into consideration when utilizing a dry, close tolerance machine for pumping flammable vapors. The ATEX directive requires an explosion protection document, according to a hazard analysis of the process, and after that to determine security strategies to mitigate the risks to be generated by process operators.

Dry pumps include pumps, which release to the air. Dry pumps have none of the issues connected to water or the oil from pumps that are wet, they're clean, need minimal upkeep and dependable, provide vacuum. They contaminate the environment, products or solvents, or do not produce waste. They could provide savings in running installation space and costs in comparison to liquid-based oil pump water ring pumps and steam ejector systems. Dry pumps have contact-free pumping no sources and mechanics.

Nevertheless, they required to pump explosive atmospheres and it is essential to consider the prospect of ignition sources. When installing pumps, procedure managers developing a safety strategy should incorporate the following steps: Identify explosive atmospheres - Avoid explosive atmospheres - Eliminate ignition sources - Limit the effects of a potential ignition - 1. There are 3 Areas to consider: 1 the external air surrounding the pump - 2 Internal 1 the air from the process port to the inlet flange of the gentle vacuum pump - 3 Internal 2 the air from the inlet flange on the gentle vacuum pump into the exhaust interface.

Avoiding explosive atmospheres and the flammable range - Operation outside the flammable range ensures which even when an ignition source is present there'll not be an explosion. Pressure, temperature, gas mix, size of equipment, management of fire propagation and turbulence all affect the flammability of a vapor. There are several ways to avoid atmospheres flammable, although not always practical, in order that in several cases it's possible to pump a flammable vapor or gas continuously without ever being from the flammable zone. Low-pressure operation mebar - As the pressure of the system reduces, eventually a point is reached where flammability is not supported. Edwards's research has shown that it's not possible to sustain ab urn in a potentially explosive air below 60 bar. Operating above the upper explosion limit or beneath the lower explosion limit - By controlling the relative concentrations of fuel and air it's possible to maintain the concentration of the vapors above the UEL or beneath the LEL, therefore eliminating the potential risk of an explosion.
