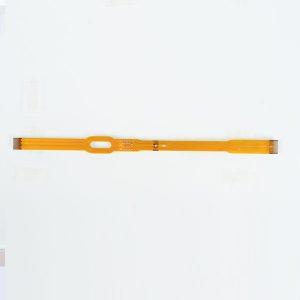

Flexible PCBs - Multi Circuit Boards 2020
by Delun kang writterTake
a look at the different PCBs that are available in the market. They are created
individually and soldered together depending upon the need of the
product.
The
PCBs are self-contained boards that are interconnected with different
electrical components such as radios, pagers, radar, beepers, computers,
smartphones, smart-watches, and more. They are created by assembling a thin
conducting layer on the exterior of the insulating board that is known as a substrate.
They place different components on the substrate which are then soldered on the
board. They come in different forms such as double-sided, single-sided, and
multi-layered. Various components are connected to the board by surface
mounting or hole technology. Come; let’s discuss various flex boards in detail.
Double-sided flex circuits
The
double-sided flex board means it has two layers of conductors and also
fabricating is done by plating them through the holes or without them. The
board that is plated through the holes is quite common in the market and they
are also named as a double-sided flex circuit board. The other name of
double-sided PCB is multiple flexible circuits. If it is produced without
plating through-holes, there is a possibility where the features can shift from
one side to another.
Single-sided flex circuit
Before
they used to come only in two varieties that are flexible and rigid, but over
the years, they are produced in different forms that can be bendable
easily. The first one was the Single-sided flex circuit boards that are used in
various applications. It has a large layer of conductor that is either made
up of metal-filled polymer or metal or on a flexible dielectric film.
Sculptured flex circuits
They
are a unique version of the PCBs and special wiring is used to create the flex
boards. The manufacturer uses a multi-step etching method that yields a
sculptured flex circuit. Copper is used to manufacturing these boards and
depending upon the length of the board, the conductor’s thickness is
determined.
Multi-layer flex circuits
When
the board is constructed with three or more layers they are termed as
multi-layer flex circuits. They are connected with the help of
plated-through-holes technique but make sure that all are not the same. For
lower circuit level features, different supply openings are also provided and
also avoids the need for continuous laminations.
Rigid-flex circuits
They
are the hybrid structure that is prepared by both flexible and rigid substrates
which are then laminated into a single product. Make sure that you do not mix
the manufacturing of rigidized flex and rigid-flex circuit constructions.
What is the objective of flex circuits?
In
today’s era, flexible boards are highly beneficial and are used in a lot of
applications. They are mostly used as connectors because of the flexibility of
the product. Because of these boards, the final product is quite sleek. They
are used in various industrial purposes and are used in wiring structures also
where bending is required. It also helps in interconnecting various electrical
components.
