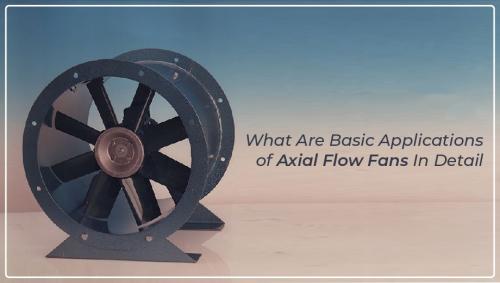

What Are Basic Applications of Axial Flow Fans In Detail

Posted by Ventech Systems
5
Oct 17, 2020
335 Views

The range of axial fans is very wide and can range from low or medium pressure fans to high-pressure fans. The Axial Flow Fans push the air in a path parallel to the axis. The blades rotate in this direction. The design of these fans is based on the types of blades responsible for creating this difference in air pressure across the fan. The blades of these fans are predominantly made of aluminum alloy or wood. It's easy to maintain and use, and the structure of these fans is solid and durable.

The Axial-Flow Fans Manufacturer integrated the fan into a ventilation panel while the driver remains in the room or hangs or draws directly into the outside air without being guided through complex ventilation ducts. Different types of applications require many different designs. A pedestal fan that stands on the ground like a ceiling fan or is mounted on walls, windows, and ventilation systems. But the main difference is not the appearance of the fans. The difference lies in the design, the internal structure of the fan. The type of engine body and cover, blades, and impeller determine the air pressure generated and how gas is removed once it has passed through the device.

What type Of Technology Is Used in Axial Flow Fans?

Compared to a duct fan, an axial fan only has two to six fewer blades. Increasing the number of blades can limit the high flow rate required to run these fans. The blades of these fans are very long and have different cross-sections throughout their radius. These axial fans are energy-efficient devices that produce more air with very little electricity and provide lower operating costs.

These fans are also very easy to use and maintain. The reduced inertia of the fan design also extends the life of the fan motor, bearings, and gearbox. The Axial Flow Fans are also reliable and flexible and have high fatigue resistance. These incredibly high-quality axial fan blades have proven themselves in extreme conditions such as high winds and cyclones. These fan blades are made with specific shapes and advanced vacuum infusion technology.

Benefits Of Axial fan design:

  1. The IDP (Inverse Design Problem) technique is used to optimize the 3D shape of an axial fan blade for the desired airflow.
  2. The desired airflow is obtained by multiplying the airflow available from the axial fan by the constant.
  3. The redesigned geometric propeller blade design was created using several design variations that ensure the exact shape of the blade.
  4. The result shows that the fan airflow can be improved with the newly developed optimal fan blade that improves the performance of the axial fan.
  5. Prototypes of real and optimal axial fan blades are made to check their validity. According to Ventech Systems, these blades are used to perform a fan performance test based on AMCA-210-99 standards.
