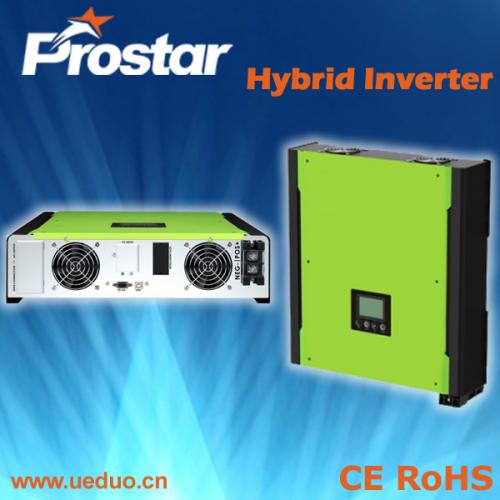

Prostar Single Phase Solar Hybrid Inverter 3000W

Posted by Orson Z.
5
International Trade & Business
Jan 28, 2015
942 Views

A solar inverter, or PV inverter, converts the variable direct current (DC) output of a photovoltaic (PV) solar panel into a utility frequency alternating current (AC) that can be fed into a commercial electrical grid or used by a local, off-grid electrical network. It is a critical BOS–component in a photovoltaic system, allowing the use of ordinary AC-powered equipment. Solar inverters have special functions adapted for use with photovoltaic arrays, including maximum power point tracking and anti-islanding protection.



Maximum power point tracking

Solar inverters use maximum power point tracking (MPPT) to get the maximum possible power from the PV array. Solar cells have a complex relationship between solar irradiation, temperature and total resistance that produces a non-linear output efficiency known as the I-V curve. It is the purpose of the MPPT system to sample the output of the cells and determine a resistance (load) to obtain maximum power for any given environmental conditions.

The fill factor, more commonly known by its abbreviation FF, is a parameter which, in conjunction with the open circuit voltage and short circuit current of the panel, determines the maximum power from a solar cell. Fill factor is defined as the ratio of the maximum power from the solar cell to the product of Voc and Isc.

There are three main types of MPPT algorithms: perturb-and-observe, incremental conductance and constant voltage. The first two methods are often referred to as hill climbing methods; they rely on the curve of power plotted against voltage rising to the left of the maximum power point, and falling on the right.

   Product Features

  • 2KW/3KW/5KW on-grid inverter with energy storage
  • Pure sine wave output
  • Microprocessor controlled to guarantee stable charging system
  • Multiple operations: Grid tie, Off grid, and grid-tie with backup
  • Built-in MPPT solar charger
  • LCD display panel for comprehensive information
  • Multiple communication
  • Green substitution for generators
  • User-adjustable battery charging current
