Program Audi RS7 2014 BCM2 Key with Autel IM608

Posted by Alex Carter
6
Dec 14, 2020
256 Views

 Test report:

2014 Audi rs7 added second key through obd in around 10 minutes, autel im608 asked me to do energize the BCM and that slowed me down a bit.  Im608 is nice.

It is the smart key with comfort access. It was a used key, but wiped from the company I purchased it from.

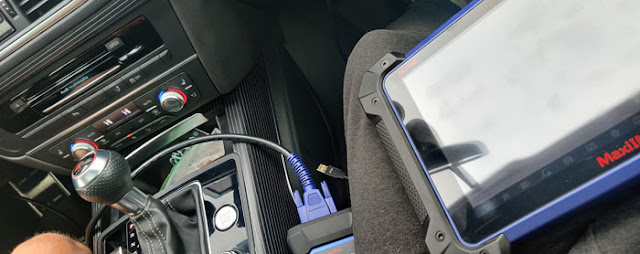

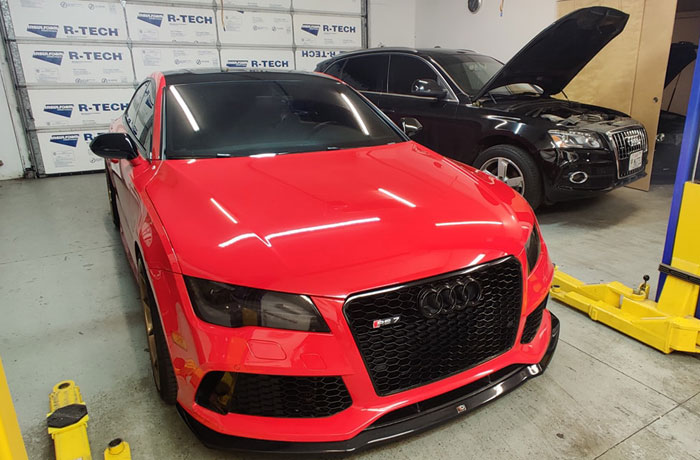

autel-im608-audi-rs7-2014-bcm2-1

autel-im608-audi-rs7-2014-bcm2-2


Here’s the tips on programming key on this car via OBD.



I unplugged the car battery when asked me to do it, because first time doing it in 7 series and didn’t know where the bcm2 was and that did the trick.

So I didn’t need to unplug BCM2, just unplug battery.

Some people say have to unplug the bcm2 otherwise it will lock the gearbox.  I have ODIS so not too worried.

My friend corrupted bcm2 data oon a Audi Q5 2012. Autel asked him to de-energize bcm2.  He disconnected all plugs and car was dead after that. He needed to read it on bench and send d
