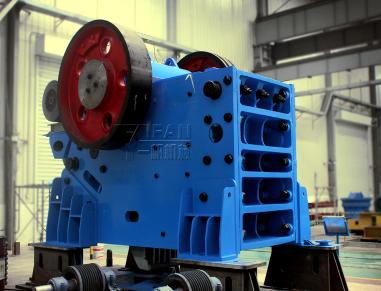

Jaw crusher, jaw crusher, jaw crusher price, jaw crusher manufacturers

Jaw crusher (jaw rock crusher), with a crushing ratio, even granularity, simple structure, reliable operation, easy maintenance, operating costs and economic characteristics. Jaw crusher (crushing equipment) are widely used in mining, smelting, building material, highway, railway, water conservancy and chemical industry and many other sectors, breaking strength of not more than 320 MPa various materials.

Jaw Crusher http://www.yifancrusher.com/JC-series-jaw-crusher.html

Jaw crusher (jaw rock crusher) purpose and scope

1, jaw crusher crusher is mainly used in metallurgy, mining, chemical, cement, construction, refractories and ceramics and other industrial sectors for medium pieces and crushing of hard ores and rocks with.

2, Jaw Crusher (Crusher crocodile) most suitable crushing equipment crushing compression strength not higher than 300MPa (MPa) of various soft and hard ore material to be broken blocks of degree not greater than the maximum technical parameters table requirements.

Jaw crusher works

Jaw crusher crusher (jaw rock crusher) works for the song moving extrusion type, its working principle is: the motor-driven belt and pulley, through the eccentric shaft to move the jaw up and down movement, when the movable jaw rises between toggle plate and the angle between movable jaw becomes larger, thus promoting the movable jaw plate close to the fixed jaw plate, simultaneously with the material is crushed or split pieces, to crushing (crusher price) purposes; when the movable jaw down, the toggle plate and moving jaw angle smaller, movable jaw plate lever action of the spring, away from the fixed jaw plate, then the crushed material from the crushing chamber discharge port. With the continuous rotation of the motor for the periodic motion of mobile jaw crusher crushing and waste material, to achieve mass production.

PE Jaw Crusher  http://www.yifancrusher.com/PE-jaw-crusher.html

Jaw crusher for crushing compressive strength at 147 ~ 245MPa all kinds of ores and rocks of coarse, medium, fine, great crushing ratio, even granularity, simple structure, reliable operation, easy maintenance, low operating costs.

Jaw crusher (jaw rock crusher) structures

Jaw crusher (jaw crusher, jaw crusher, jaw broken) the structure of the main frame, eccentric shaft, big pulley, flywheel, moving jaw, side guard, elbow board, elbow board seat, adjusting screw gap, reset spring, fixed jaw plate and movable jaw plate and other components, which also play a role as insurance bracket.

Mobile Jaw Crusher  http://www.yifancrusher.com/Mobile-Jaw-Crusher-station.html

Jaw crusher (jaw rock crusher) Features

A simple structure, convenient maintenance; stable performance, low operating costs; crushing ratio;

2, the crushing chamber depth and no dead zone, increased feed capacity and output;

3, its crushing ratio, uniform particle size;

4, gaskets nesting population adjustment device, reliable and convenient adjustment range, increase the flexibility of the equipment;

5, the lubrication system safe and reliable, easy to replace parts, maintenance workload is small;

6, simple structure, reliable operation, low operating costs;

7, energy-saving equipment: stand-alone energy-saving 15% to 30%, saving more than double the system;

8, nesting population adjustment range, can meet different user requirements;

9, low noise, less dust.
