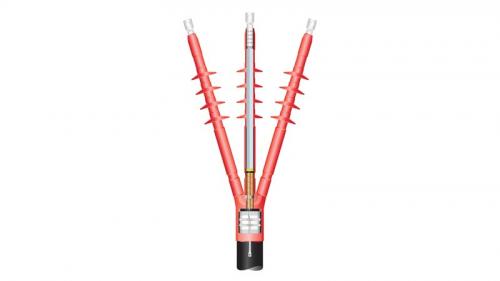

Heat-shrink cable terminator producing and its importance

by Alyamuna Densons Al Yamuna Densons
Though present-day cable manufacturing technology evolved heavily the essential factors remained the same. When installing the heat-shrink cable terminators on the high voltage power system remain unchanged. Cheap materials sometimes burn or melt in the due process that's why safety and operational service cable joints terminators. Heat Shrinkable Terminations Manufacturers produces all types of heat-shrinkable terminators for every industry. In the present-day UK and all over the world uses the aluminium and lead wire. Two types of lead wires are available with or without steel wire armouring.

Cable joint and Terminator kit instructions

Heat shrink polymer system also needs good cable jointing and termination instructions. Heat Shrinkable Terminations Manufacturers use pictorial drawings as their guideline to provide proper guidance of how they work and all of their warnings. Non-English speaking countries can also understand the guidelines as well. Failure mainly happens because of wrong attributes and poor cable preparations. The correct way to detect if there's any fault is to look out at the areas where the electric cable stresses are put like the Semicon screen cut back.

Some Terminology and common phases to describe Cable joint termination

In spite of sharing the same language that is English, some countries have different names for Heat Shrink Cable Terminations Kits. Some of the terminologies are written below as a guide,
  • the core is also known as the conductor
  • the screen can be called shield
  • joints jointing is also called as splice splicing
  • cable jointers are also cable grounding
  • armour jointing can be also called reinforcing
  • metal sheaths are also known as armour
  • self-amalgamating can be called as self-fusing.

A list of reasons for weak results in heat shrink termination

compression or crimp lugs attached to the outside of the terminators of the compression tube with holes that allows moisture to go deep within the cores.
to eliminate failure air pockets are there covering the lead and the belted crotch area.

  • if two cores are too close to each other and there's no screen guarding them in between this results the air break down and fail the system.

  • poor cable mechanism is another vital reason for system failure. If the extruded area of the screen is not prepared with sufficient care chances of system failure increases.

  • So these are some of the things you need to take care of while using Heat Shrink Cable Terminations Kits.

A list of weaknesses resulting in system failures

The earthing must carry any current circulations to cure screens the metal sheets or the armour wires. It must also have the power to carry false current. For outdoor usages, the usages of tin-plated copper, metal canister, solder blocked braids, crimps and armour support should be implemented.

  • Wrong crimping
  • connector filled with air
  • air trapped between the insulation and the connector.
  • Current discharge at the end because of poor stress taping
  • moisture pouring through the poor sealing
  • not enough insulations
  • poor cable terminating kit instructions.

Go through the whole article above to gain some knowledge about heat shrink cable joint terminators that will keep you aware and safe.
