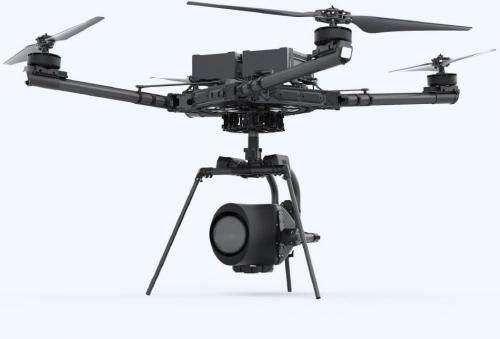

Freefly Alta X quadcopter - Key features and specifications

Freefly Alta X is a highly compact and portable quadcopter that meets all kinds of drone requirements. From heavy load carrying to RTK mapping, the Alta X quadcopter can easily be combined with several modules, accessories and payloads. This device is accurately engineered with 4 powerful props & motors. Alta X offers approx 50 minutes of flight time. The compact design and powerful features are perfect for low-vibration flights. This drone is perfect for industrial applications, mapping, surveying and more. Take a closer look at the key features and specifications of Freefly Alta X.



Compact and portable design



Freefly Alta X comes with a very portable and compact design. The easy-to-deploy system of this drone folds to half of the normal size, making the product single-person packable. The advanced electric quadcopter features and active blade design reduce the rate of unwanted vibration significantly. Apart from that, these features also offer better flight performance, long motor bearing life, seamless camera footage, less fatigue on components, etc.



Smooth payload integration



This drone also offers easier and smoother payload integration for multi-operations. With the quick-release system, the Freefly Alta X can easily be integrated with any payload that suits several mission requirements. The expansion hub of this drone features 3 battery voltage power O/P and DC to DC converter (12 Volt) to power the payloads. Apart from that, it also offers USB-C, UART, CAN and 12C connectivity for quick access.



Futaba 14SG receiver and controller

The Futaba controller (14SG) mainly works with the receiver to provide full wireless control over the quadcopter in Mode 2 configuration. If you configure an extra transmitter in the Freefly Alta X, you may utilize the built-in display of Futaba for receiving and monitoring the flight telemetry.



FRX pro-long-range radio



The FRX Pro is accurately designed for transmitting the telemetry to the operator ground station from 1 mile away through a 900 MHz signal. This radio signal is mainly required for a flight operation involving QGroundControl. The range depends on the RF environment, signal power settings & sight line. This is also compatible with Windows and MAC operating systems.



FPV System



The Alta X FPV System is engineered for wireless transmission. This is essential for flight telemetry. The FPV system provides major flight information such as battery voltage, ground speed, heading, etc. It also offers airframe video references.



Additional features



Freefly Alta X comes with several flight modes such as manual, position, altitude, mission, orbit, loiter, return, etc. Orientation lights are mounted on boom tips. Apart from that, it also offers multicolor orientation lights: Red, yellow, orange, green, cyan, blue, white, purple, etc. Propellers are made of carbon fiber-filled nylon.



Key specifications

• Max takeoff weight: 34.86 kg (76.85 lb)
• Payload capacity: 35 lb (15.88 kg)
• Maxi flight time: 50 Minutes
• GNSS support: GPS, BeiDou, GLONASS,
• Package weight: 46 lb
• Box dimensions: 36 x 30.5 x 13" (LxWxH)
• Motor numbers: 4
• Max power output: 100 A
• Equivalent Kv: 115 rpm/V



Alta X quadcopter is the best package for those who want a compact, powerful and fully compatible drone for multipurpose projects. Looking for Freefly Alta X? Order it now from Air Supply. We deliver the best product to your doorstep on time. We assure guaranteed delivery to our customers.
