Automatic relay test kits offered by Myriad Industrial Solutions

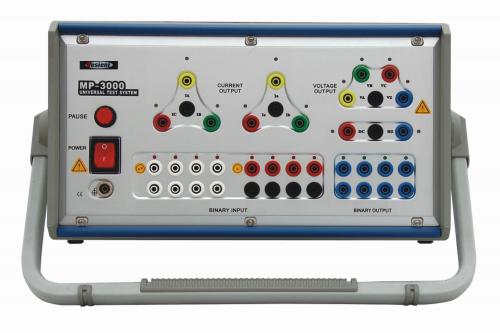

Myriad Industrial Solutions LLP offers Economical relay test set series MP3000 Universal test system.Features: Independent Current and voltage sources
High power output over a brond range of outputs
Plugin Module technology
High Accuracy
Licence free user friendly relay test software.
Can test all types of relays.
Software calibration module, no need to send the test kit to third party for calibration.
MP3000 universal test system is advanced test system to test different kinds of relays such as Over current, Over voltage,IDMT ,frequency, df/dt , directional, differential, distance , sychro etc.
Each current source is 30A ac/dc and each voltage sourrce can be 0-125V or 0-300V ac dc.
Current source has a low current range of 0.3 A with 0.03 ma resolution suitable for testing highly sensitive current operated relays.
There is a special source for for testing High burden relays
Variable auxiliary dc is provided .
Kit can be controlled by user friendly pc based elay test software. The software has provision for transient playback, harmonic test, differential slope test, test sequencer etc.
http://www.tesient.cn/en/UploadDir/jzmt/201005/2010052716474421.jpg
For more details visit http://www.myriadindustrialsolutions.co.in/goose-ready-three-phase-relay-test-set-mp-3000-f-fh.htm
