In the realm of modern industrial operations, material handling efficiency is critical. Among the diverse crane types, the underslung EOT crane has emerged as a preferred solution for facilities where maximizing floor space, flexibility, and structural efficiency is a priority. With the right design and application, these cranes provide unmatched versatility in warehouses, manufacturing plants, and maintenance shops. This blog will provide an in-depth look at underslung EOT cranes, their design, benefits, applications, selection criteria, and the expertise offered by Dhiraj Crane in this sector.

Understanding the Underslung EOT Crane

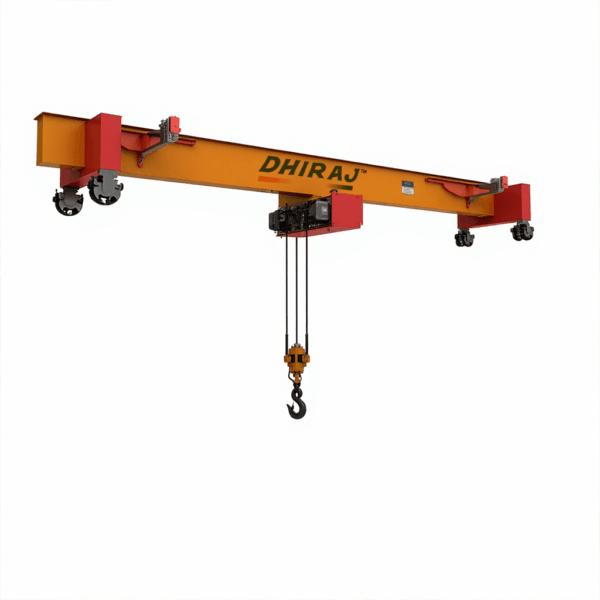

An underslung EOT crane (Electric Overhead Traveling crane) is a type of overhead crane where the bridge girder is suspended from rails mounted on the underside of roof beams or trusses. Unlike conventional overhead cranes, which may require floor-supported runways, the underslung design hangs from overhead structures.

This configuration offers multiple advantages:

Unobstructed floor space—no need for ground-supported columns along the crane path.
Efficient use of overhead structural strength—roof trusses bear the crane load.
Flexibility in retrofits—ideal for upgrading existing facilities without extensive structural modifications.

Dhiraj Crane, a trusted industrial crane manufacturer, offers a range of single girder and double girder underslung EOT cranes with capacities from 0.5 ton to 20 ton and spans up to 30 meters, demonstrating adaptability for diverse operational needs.

Core Components and Design Considerations

The design of an underslung EOT crane includes several critical components:

Runway Rails & Support Structure
- Rails are mounted to roof beams or trusses.
- The supporting structure must handle both static and dynamic loads.
- Adequate reinforcement may be required for heavy-duty applications.
Bridge Girder & End Carriages
- The bridge girder spans between runway rails and supports the hoist trolley.
- End carriages stabilize the bridge during travel, preventing sway.
Hoist Mechanism
- Wire rope hoists or chain hoists provide lifting capabilities.
- Motorized systems allow precise control of lifting speed and load positioning.
Control Systems
- Options include pendant control, radio remote, or operator cabin.
- Safety features such as overload sensors, emergency stops, and limit switches are standard.
Load, Span, and Duty Class
- Capacity must account for peak load plus a safety margin.
- Span (distance between runways) and lift height determine the crane’s travel and hook reach.
- Duty class, based on operating frequency, influences motor selection and structural design.

Dhiraj Crane offers customizable solutions for each of these components, ensuring the underslung EOT crane matches the facility’s specific requirements.

Advantages of the Underslung EOT Crane

Selecting an underslung EOT crane offers several industrial benefits:

Optimized Floor Layout: Frees up floor space for movement of personnel, vehicles, or other machinery.
Reduced Structural Modifications: Less invasive installation in existing buildings.
Cost Efficiency: Reduced requirement for floor-supported columns lowers material and civil costs.
Flexible Span & Lift: Supports long spans and high lift heights, with capacities up to 20 tons or more.
Versatile Applications: Can travel over conveyors, assembly lines, or storage areas without interference.
Improved Safety: Keeps lifting operations overhead, minimizing collision risks at floor level.

Dhiraj Crane’s engineering expertise ensures each underslung EOT crane is designed with precision to maximize these advantages while maintaining operational safety.

Practical Applications Across Industries

The underslung EOT crane finds use across various industrial sectors:

Automotive & Assembly Plants
- Lifting heavy components without obstructing the production floor.
- Integration with conveyor systems for seamless material flow.
Warehouses & Distribution Centers
- Efficient movement of goods and palletized loads.
- Uninterrupted aisle space for forklifts or automated guided vehicles.
Maintenance & Repair Workshops
- Facilitates handling of engines, machinery, and large equipment.
Retrofitted Facilities
- Ideal for older plants where floor-supported cranes are impractical.

Dhiraj Crane has extensive experience supplying underslung EOT cranes that meet these diverse operational requirements, ensuring high performance and durability.

Selecting the Right Underslung EOT Crane

Choosing the appropriate crane requires a careful assessment:

Load Capacity
- Determine maximum lifting requirements and include safety margins.
Span and Runway Length
- Assess distance between runway supports; Dhiraj Crane offers spans up to 30 m.
Lift Height & Hook Path
- Define maximum vertical and horizontal reach required.
Duty Cycle
- High-frequency usage requires more robust components and motors.
Structural Integrity
- Ensure roof beams or trusses can sustain dynamic and static loads.
Control & Safety Options
- Pendant, cabin, or remote controls with limit switches, overload sensors, and emergency brakes.
Customization & After-Sales Support
- Dhiraj Crane provides tailored solutions and ongoing maintenance support.
Cost & ROI Analysis
- Factor in crane cost, structural modifications, and long-term operational benefits.

Implementation & Maintenance Best Practices

To maximize crane efficiency and safety:

Conduct structural analysis of the building and runways.
Ensure accurate alignment and leveling during installation.
Perform load testing and commissioning before operational use.
Schedule regular preventive maintenance for hoists, brakes, and rails.
Train operators in safe lifting practices and emergency procedures.

With proper implementation, an underslung EOT crane can significantly improve operational productivity and safety.

Why Choose Dhiraj Crane

Dhiraj Crane stands out for:

Proven expertise in designing and manufacturing industrial lifting solutions.
Customized underslung EOT crane for varying loads, spans, and duty cycles.
End-to-end support, from consultation and design to installation and maintenance.
Compliance with industrial quality standards for safety and durability.

Choosing Dhiraj Crane ensures a high-quality, efficient, and reliable underslung EOT crane solution for your industrial facility.

Conclusion

The underslung EOT crane is a space-efficient, versatile, and cost-effective material-handling solution for modern industrial operations. By suspending the crane from the overhead structure, it maximizes floor space, reduces civil works, and integrates seamlessly with existing plant layouts.

For industries seeking robust, reliable, and customizable crane solutions, Dhiraj Crane provides expertly engineered underslung EOT cranes, designed to meet diverse operational needs while ensuring safety, durability, and ease of use. Partnering with Dhiraj Crane transforms the material-handling process, optimizing productivity and operational efficiency across your facility.

For more details and product specifications, explore Dhiraj Crane’s range of underslung EOT cranes: Dhiraj Cranes.
