Question: 1

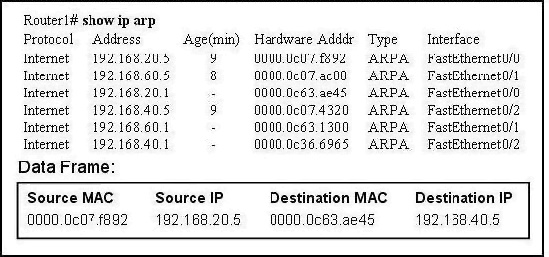

Refer to the exhibit:

What will Router1 do when it receives the data frame shown? (Choose three.)



A. Router1 will strip off the source MAC address and replace it with the MAC address 0000.0c36.6965.

B. Router1 will strip off the source IP address and replace it with the IP address 192.168.40.1.

C. Router1 will strip off the destination MAC address and replace it with the MAC address 0000.0c07.4320.

D. Router1 will strip off the destination IP address and replace it with the IP address of 192.168.40.1.

E. Router1 will forward the data packet out interface FastEthernet0/1.

F. Router1 will forward the data packet out interface FastEthernet0/2.



Answer: A, C, F



Explanation:

Remember, the source and destination MAC changes as each router hop along with the TTL being decremented but the source and destination IP address remain the same from source to destination.



Question: 2



Refer to the exhibit.

Which three statements correctly describe Network Device A? (Choose three.)



A. With a network wide mask of 255.255.255.128, each interface does not require an IP address.

B. With a network wide mask of 255.255.255.128, each interface does require an IP address on a unique IP subnet.

C. With a network wide mask of 255.255.255.0, must be a Layer 2 device for the PCs to communicate with each other.

D. With a network wide mask of 255.255.255.0, must be a Layer 3 device for the PCs to communicate with each other.

E. With a network wide mask of 255.255.254.0, each interface does not require an IP address.



Answer: B, D, E



Explanation:

If Subnet Mask is 255.255.255.128 the hosts vary from x.x.x.0 - x.x.x.127 & x.x.x.128- x.x.x.255, so the IP Addresses of 2 hosts fall in different subnets so each interface needs an IP an address so that they can communicate each other.

If Subnet Mask is 255.255.255.0 the 2 specified hosts fall in different subnets so they need a Layer 3 device to communicate.

If Subnet Mask is 255.255.254.0 the 2 specified hosts are in same subnet so are in network address and can be accommodated in same Layer 2 domain and can communicate with each other directly using the Layer 2 address.



Question: 3



Which layer in the OSI reference model is responsible for determining the availability of the receiving program and checking to see if enough resources exist for that communication?



A. transport

B. network

C. presentation

D. session

E. application



Answer: E



Explanation:

This question is to examine the OSI reference model.

The Application layer is responsible for identifying and establishing the availability of the intended communication partner and determining whether sufficient resources for the intended communication exist.



Question: 4



Which of the following describes the roles of devices in a WAN? (Choose three.)



A. A CSU/DSU terminates a digital local loop.

B. A modem terminates a digital local loop.

C. A CSU/DSU terminates an analog local loop.

D. A modem terminates an analog local loop.

E. A router is commonly considered a DTE device.

F. A router is commonly considered a DCE device.



Answer: A, D, E



Explanation:

The idea behind a WAN is to be able to connect two DTE networks together through a DCE network. The network’s DCE device (includes CSU/DSU) provides clocking to the DTE-connected interface (the router’s serial interface).

A modem modulates outgoing digital signals from a computer or other digital device to analog signals for a conventional copper twisted pair telephone line and demodulates the incoming analog signal and converts it to a digital signal for the digital device. A CSU/DSU is used between two digital lines -

For more explanation of answer D, in telephony the local loop (also referred to as a subscriber line) is the physical link or circuit that connects from the demarcation point of the customer premises to the e
