2 Razor Mig Separate Wire Feeders And Their Specs
by David N. Welding Equipment Supplies VIC, AustraliaWire feeders are advanced and powerful workshop machines used for MIG, TIG and stick welding purposes. These welding machines are made of solid constructions and can withstand tough conditions. In this article, we are going to discuss 2 Razor MIG separate wire feeders.

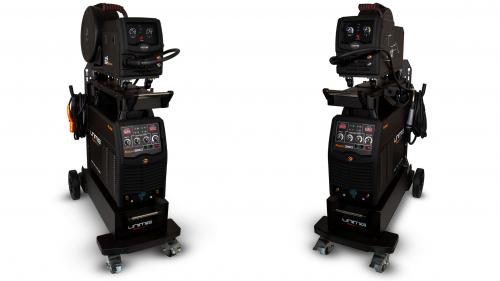

The Razor 250 SWF
The Razor 250 SWF is one of the powerful workshop machines that is used for MIG, TIG and STICK welding purposes. This machine offers extra 10m manoeuvrability in the workstation. The Razor 250 SWF comes with solid construction and can withstand tough conditions.
Machine features:
- Wire drive: 4 Geared (Separated)
- VRD: Yes
- Spool gun connection: Yes
- Push or pull gun connection: Yes
- Burnback adjustment: Yes
- Wire inch: Yes
- Inductance control: Yes
- Thermal overload protection: OTW
MIG specs
- Current range: 30 to 250A
- Duty cycle @ 40°C: 35% @ 250A
- Wire size range: 0.61.0mm
- Wire spool size: 5kg / 15kg
- Thickness range: 1 to 12mm
- Drive roller size: 30/22 (x2)
TIG specs
- Function type: DC Lift Arc
- Current range: 10 to 225A
- Duty cycle @ 40°C: 35% @ 225A
- Thickness range: 1 to 10mm
Stick specs
- Current range: 10 to 250A
- Duty cycle @ 40°C: 35% @ 250A
- Thickness range: 1 to 12mm
- Electrode range: 2.5 to 4.0mm
The Razor 350 SWF
The Razor 350 SWF is the advanced version of the Razor 250 SWF workshop machine that is used for MIG, TIG & STICK welding purposes. This machine also offers extra 10m manoeuvrability in the workstation. Moreover, the Razor 250 SWF comes with solid construction and can withstand tough conditions.
Machine features:
- Wire drive: 4 Geared (Separated)
- VRD: Yes
- Spool gun connection: Yes
- Push or pull gun connection: Yes
- Burnback adjustment: Yes
- Wire inch: Yes
- Inductance control: Yes
- Thermal overload protection: OTW
MIG specs
- Current range: 30 to 350A
- Duty cycle @ 40°C: 35% @ 350A
- Wire size range: 0.61 to 1.2 mm
- Wire spool size: 5kg / 15kg
- Thickness range: 1 to 16mm
- Drive roller size: 30/22 (x2)
TIG specs
- Function type: DC Lift Arc
- Current range: 10 to 350A
- Duty cycle @ 40°C: 35% @ 225A
- Thickness range: 1 to 10mm
Stick specs
- Current range: 10 to 350A
- Duty cycle @ 40°C: 35% @ 350A
- Thickness range: 2.5 to 16mm
- Electrode range: 2 to 16mm
The Razor 250 SWF and Razor 350 SWF both assure advanced welding solutions with high accuracy. These machines are easy to set up and ideal for welding professionals.
