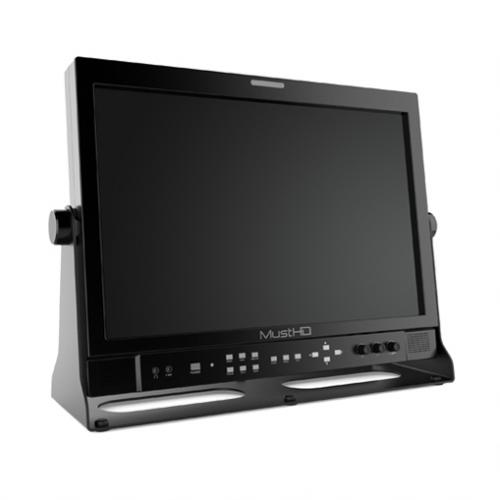

17-inch 1920*1080 Field monitor with HDMI Tally YPbPr Focus assist False color
The MustHD 17-inch 1920x1080 Video-assist Field Monitor is designed to help film makers to get better focus and thus better pictures and videos! The MustHD 17-inch On-camera Video-assist Field Monitor for DSLR presents crystal clear image of what you are shooting directly onto a large 1920x1080 LCD screen, meaning you never have to strain your eyes to see any image again. Ideal for armatures as well as professionals who need to view images all day long! Make focusing, framing your picture and previewing quicker and clearer.
| LCD | Size | 17.3 inches |
| Resolution | 1920*1080 | |
| Pixel Pitch | 0.199(H)x0.199(W) mm | |
| Color Depth | 16.7M(8bit) | |
| Viewing Angle | H: 178degrees V: 178degrees | |
| Luminance of white | 300 cd/㎡(Center) | |
| Contrast Ratio | 800:1 | |
| Display Area | 385(H) x218 (V)mm | |
| Input Signal | 6x BNC | 3xYPbPr Input |
| 1xAV Input | ||
| 1xSDI Input | ||
| 2XAudio(L/R) Input | ||
| 1xS-VIDEO | S-VIDEO Input | |
| 1xDVI | DVI-D Input | |
| 1xHDMI | HDMI Input | |
| 1xRS232 | TALLYLED | |
| 1xVGA | TALLY Key | |
| Output Signal | 1x BNC | SDI Output |
| 3xBNC | YPbPr Output | |
| 1xS-VIDEO | S-VIDEO Output | |
| Audio Out | Analog Stereo (phone jack) Internal speaker (Mixed Mono) | |
| Power | DC 12V | |
| Power Consumption (Approx) | 30 Watts (typical) | |
| Operating Temperature | 0℃to 45℃ (32℉ to 113℉) | |
| Storage Temperature | -20℃to 60℃ (14℉ to 140℉) | |
| Main Body Dimension (mm/inch) | 403x307x40 / 15.8x12.1x1.6 | |
| Weight | 3.8 kg/ 8.4lbs | |
