The Puculiarities of a Digital Magnetic Flow Meter

by Sanjeev Yadav SEO Consultant

A magnetic flow meter is also known as an electromagnetic flow meter or mag meter. The meter is used for measuring the flow of electrically conductive liquids. This device is widely used in wastewater applications and other applications, where there is a problem of low-pressure drop and the right amount of liquid conductivity is required.

The meter works on the principle of Faraday's law, which explains that when a conductor moves through a magnetic field of a strength, then a voltage produced is proportional to the velocity between the conductor and the magnetic field.

Electromagnetic flow meter are used in process control instrumentation; as it is Maintenance free low cost, highly stable reliable & ideal flow meter suitable for wide ranges of liquid flow measurements the flow meter with low pressure & Low Flow.

We are providing different types of modules such as bellow:-

Head mount Transmitter with Digital Indicator.

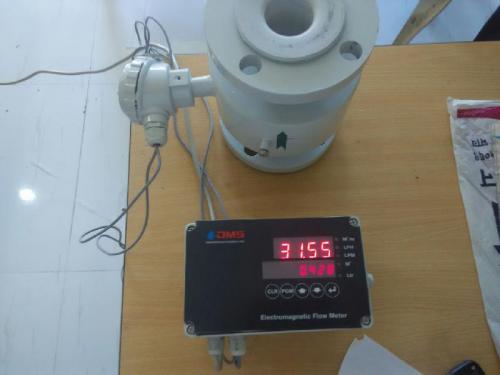

Remote Mount Transmitter with Digital Indicator

Head mount Transmitter with Digital Indicator with MODBUS communication.

Remote Mount Transmitter with Digital Indicator with MODBUS communication.

Features :-

• The meter installed is inline flange type.

• The length of the cable for remote is 10 meters.

• The Class Protection for the sensor and transmitter is IP 65.

• The meter is used to measure the volumetric flow rate of liquids or gases.

It is very important to choose the right flow meter after carefully understanding the working of the meter and its installation. In the market, different types of meters are available, like the digital, analog, and shared. The different points which are necessary to consider are pressure, temperature, conductivity, viscosity, vapor pressure, fluid's composition, light transmission, and so on. Another point to be taken care of is the piping and the location of the flow meter. The main requirement of the flow meter is water that has ions, and pipe surface such as the rubber-lines steel tube, which is insulated.

The different types of magnetic meters are the target meter and turbine meters. They do not require much maintenance or replacement. It is advisable to check the meter from time to time in order to ensure its accurate flow measurement.

Advantages:-

• It reacts only to the velocity of the fluid.

• It is available in a wide variety of sizes.

• The fluid temperature range is -40°C to +120°C.

• It has a bidirectional flow measurement.

• A magnetic flow meter provides an unobstructed flow path, with negligible pressure drop due to its pipe.

• The typical accuracy for a magnetic flow meter is + 0.5 % of full scale.

• This is among the best of the various pipe flow meters.

• The effect of fluid viscosity on flow through a magnetic flow meter is

essentially the same as for flow through the pipe itself.

• The magnetic flow meter can be used for pipe flow measurement of either clean or dirty liquids, including wastewater, corrosive liquids, or slurries.

• The pressure drop is very less.

The meter comprises of two parts, namely:

• Primary elements, which are installed straight on the process line.

• Secondary elements, which are an electronic transmitter.

Applications:-

Electromagnetic flow meter can be used for precise flow measurement of all electrically conductive liquids such as sledges, slurries, sewage, milk, water and waste water.

Electromagnetic flow meter has many applications across many industries

Chemical measurement, Water/waste water Treatment & metering

Building Automation & plant automation

Pulp, paper, Food & Beverage

Automated meter reading

Drinking water & Public utility

Utility sub meter & Water conservation

There are many manufacturers and suppliers in India who deal with the digital magnetic flow meter and provide it at very cost-effective prices. These suppliers make sure that the meters are made from high-quality raw material sourced from the authorized vendors only in order to ensure premium products at fair prices. The meter is packed in wooden cages to ensure that there is no damage to the product during transit. These Indian suppliers should adhere to the standards and guidelines laid down by the industry in order to become the market leader.
