SDconnect C4 WLAN TCP/IP Configuration on das xentry

Automotive & Transport

Jun 24, 2015

1589 Views

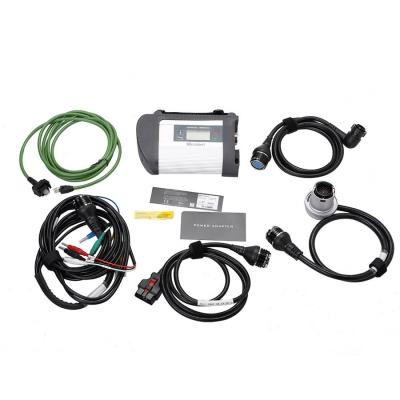

It is very important to setup a the correct ip address on SDconnect C4 WLAN Setting , if you are going to use SDconnect C4 WLAN/ wifi function, you need Configure SDconnect C4 WLAN Setting on das xentry software, The steps required to setup up a right IP address, but the process is a bit different from Star C3 Multiplexer, Now here vipprogrammer.com sharing step by step Mercedes star diagnosis mercedes c4 mb sd connect 4 WLAN Setting Guide.

SDconnect C4 WLAN TCP/IP Configuration on das xentry

1. Find out and open Local Area Connection Properties>>General>>Internet Protocol (TCP/IP) Properties. Set IP address as 172.29.127.XXX (any digit combination between 1 to254) and subnet mask as 255.255.0.0.

2. Double click MB SD connect C4 to open the control menu.

3. Select "Configuration" icon and accept the warning message by click "Yes"

4. Select "Register/Configure" under the "MUX" icon

5. Select the desired SD connect name

6. Set WLAN parameters, Road including: ID address, Network screen, SSID (network name), Encryption, key/

ID address: 192.168.2.200

Network screen: 255.255.255.0

SSID (network name): Road24h

Encryption: WEP/Hex

Network key: aaaaaaaaaaaaaaaaaaaaaaaaaa (26 * a)

7. Click "Start" to continue network configuration

8. WLAN configuration information will display on the next program.

9. Open SD connect wireless connection Internet Protocol (TCP/IP) Properties. Set the IP address as: 192.168.2.xxx (any digit combination between 1 to254 except 200) and set subnet mask as 255.255.255.0.
