Quotation & Configuration & Specifications for 300kW Volvo Generator Set

by Dieselgenerator Tech ***

Dingbo Power's Generators Series, 300kW Volvo diesel generator set is priced around US$30,000 to 40,000. As a backup power source, it is especially suitable for dry and cold places. Dingbo Power, as an authorized OEM partner of Volvo, can provide customers with high-quality, low fuel consumption, advanced performance, stable operation, safe and reliable Volvo generator sets and complete global joint warranty after-sales service.

Dingbo Power's Volvo series generator sets use the well-known electronic injection diesel engine produced by the Swedish Volvo Group as the power engine. It excels in technology such as six-cylinder engines and electronic injection; quality, safety, and environmental protection are the values shared by the entire Volvo Group. The 300 kilowatt Volvo generator set is used as a backup power source, which is especially suitable for dry and cold places. The current market price of Volvo 300-kilowatt diesel generator sets is about 200,000 to 300,000. The price of a 300kw Volvo generator set is not absolute. We all know that the price of a diesel generator set is affected by the unit’s power, brand, configuration, market factors, etc. According to the different configuration of the unit, the price will vary, such as: the control panel can be selected from the start control of the system, automatic load switching screen ATS, low-noise silent box series, and mobile trailer series, etc.

Quotation/Configuration/Specifications for Volvo 300 Kilowatt Generator Set

300kw Volvo generator set optional configuration (price is not included)

1. Optional configuration of control screen:

1) Self-starting control system

2) Automatic load switching screen ATS

2. Other optional configurations:

1) Low noise series

2) Trailer series

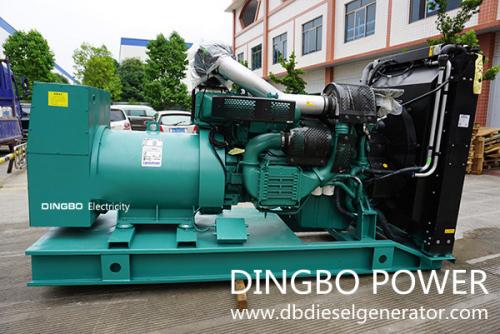

Technical parameters of 300kw Volvo generator set:

Output power: 300KW/375KVA

Speed/frequency: 1500 rpm/50Hz

Voltage level: 400/230V

Number of cylinders and structural features: 6-cylinder in-line, four-stroke

Bore/stroke: 131/158 (mm)

Cooling method: water cooling

Intake mode: supercharged, intercooled

Start mode: 24VDC electric start

Fuel consumption rate: ≤192 g/kw•h

Oil consumption: 0.04L/h

Compression ratio: 18.1:1

Displacement: 12.78 (L) Power factor: 0.8

Rated current: 540 (A)

Steady-state voltage adjustment rate: ≤±2.5%

Transient voltage adjustment rate: -15%≤δυ≤+20%

Voltage stabilization time: ≤3S

Voltage fluctuation rate: ≤±0.5%

Steady-state frequency adjustment rate: ≤0.5%

Transient frequency adjustment rate: ≤±5%

Frequency stabilization time: ≤6S

Frequency fluctuation rate: ≤1%

Unit net weight: 2900 (kg)

Unit size (for reference only): 3100×1200×1750 (mm)

Volvo generators have been widely used in post and telecommunications, oil fields, factories, troops, hospitals, high-rise buildings and other departments as emergency backup power sources, unattended power stations or field work power stations. Guangxi Dingbo Power Equipment Manufacturing Co., Ltd., as a diesel generator manufacturer with 15 years of manufacturing experience, and as an authorized OEM partner of Volvo, can provide customers with high-quality, low fuel consumption, advanced performance, stable operation, safe and reliable Volvo generator sets and comprehensive global warranty after-sales service. You could consider our company and we could customize various type of generators that you are interested in. If you plan to purchase diesel generator, we can be reached at dingbo@dieselgeneratortech.com.
