Original V4.8.7 Xhorse VVDI PROG Programmer Standard Version VVDI PROG
by Xing T. ***Top 8 Reasons to Get VVDI Prog V4.8.7:
1. Support R&W lots of chips, include MC9S08 series, MC68HC(9)12 series,MC9S12 series, V850 series, H8X series, R8C series, PCF79XX series and most eeprom chips
2. Support chip data verify, check blank function
3. Support data file compare function
4. Support R&W BMW N20, N55 ECU ( show ISN directly )
5. Stable R&W MC9S12XE series chips (5M48H/1N35H/2M53J/3M25J etc.)
6. Support renew PCF79XX remote, currently support BMW E/F series
7. Lots of connection diagram
8. Support Multi-language now: English, Arabic, Czech, French, Italian, Polish, Portuguese, Russian, Spanish, Turkish & Chinese Simplified
Adapters Detailed Description:

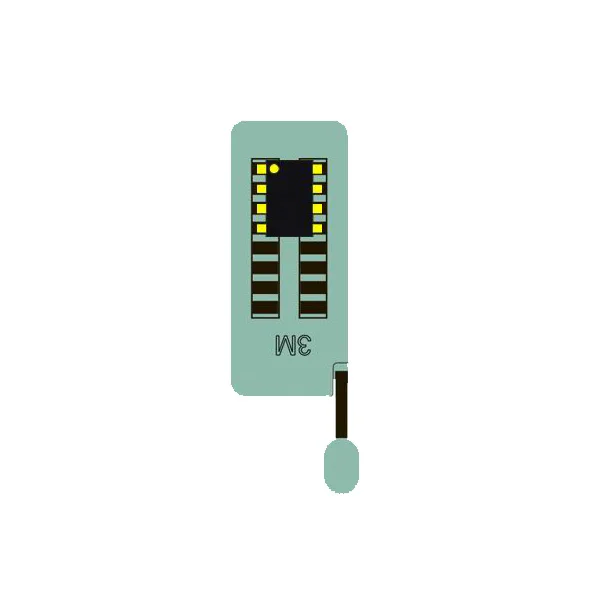

16Pin Locking Socket
Read the common EEPROOM, note: please insert the chip by following the below picture.

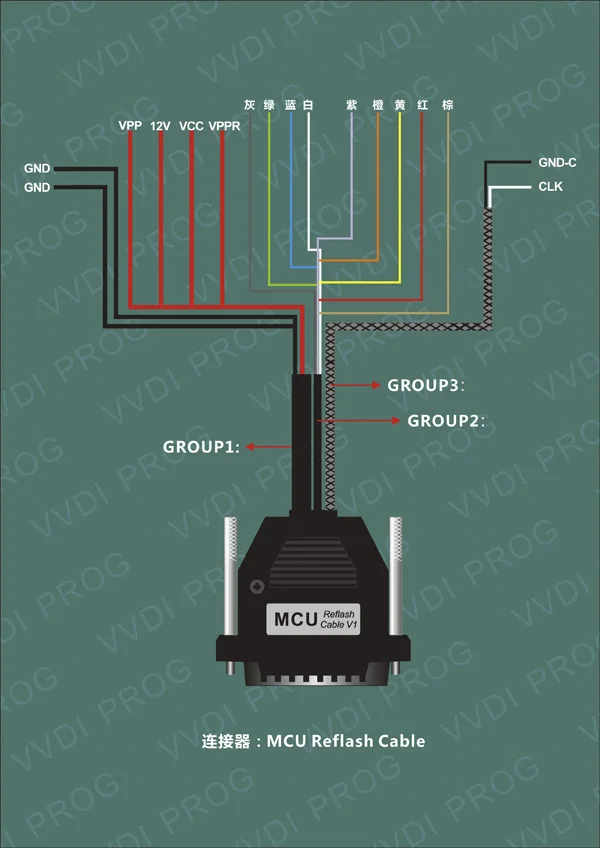

1.3.2 MCU Reflash Cable
Used to program MCU on board

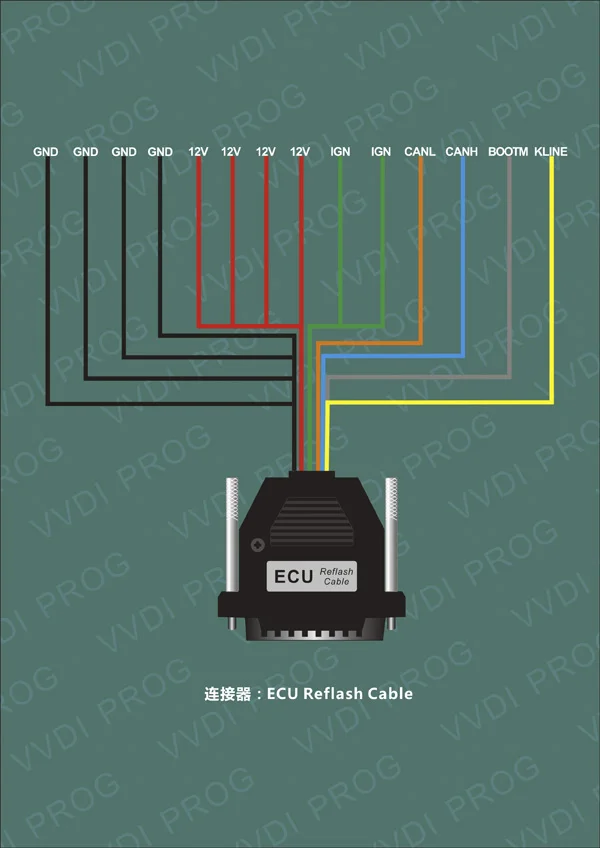

1.3.3 ECU Reflash Cable
Used to program ECU

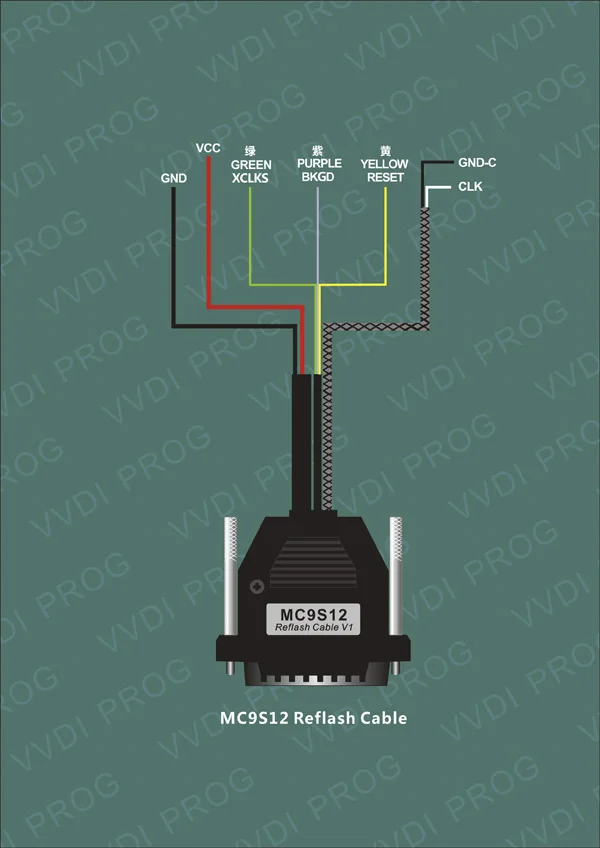

1.3.4 MC9S12 Reflash Cable
Used to program MC9S12 series chip
EEPROM
| Manufactures | Types | Support | Remark |
| for ATMEL | AT24CXX | R | |
| AT25XXX | R | ||
| AT93CX6 | R | ||
| for BOSCH | B3XX | R | |
| B4XX | R | ||
| B5XX | R | ||
| B58XXX | R | ||
| for CATALYST | CAT24CXX | R | |
| CAT24WXX | R | ||
| CAT93CX6[A] | R | ||
| for EXEL | XL[S]24CXX | R | |
| XL[S]93CX6 | R | ||
| for FAIRCHILD | FM24CXX | R | |
| NM24CXX | R | ||
| NM93CX6 | R | ||
| for GRUNDIG | GRXX | R | |
| for HOLTEK | HT93CX6 | R | |
| for MICROCHIP | 24AAXX | R | |
| 24[L]CXX | R | ||
| 93[L]CX6 | R | ||
| 93AAX6 | R | ||
| for MITSUBISHI | M6M800X1 | R | |
| for SEIKO | S-24CXX | R | |
| S-93CX6 | R | ||
| for ST | D80/D160 | R | Can erase the first 32 bytes |
| M35080 | R | Can erase the first 32 bytes | |
