MB CAN Filter 18 In 1 for Mercedes W222/W205/W447/204/W212/E(W207)/W246 for Benz BMW Universal Odome

by Xing Tu sales manager

MB CAN Filter 18 In 1


ATTENTION: If there is any destination tax/duties for the package, that is afforded by buyer.Thanks very much for your understanding!



1. For B-enz 18 types chasis model: S(222), S(221), C(205), C(204), V(W447), E(W212), E(W207), A(W176), G(W463), ML(W166), SL(R231), GL(X166), B(W246), CLS(W218), SLK(R172), SLS(W197), CLA(W117), GLK(X204)
For B-MW:   CAS4/FEM Fxx

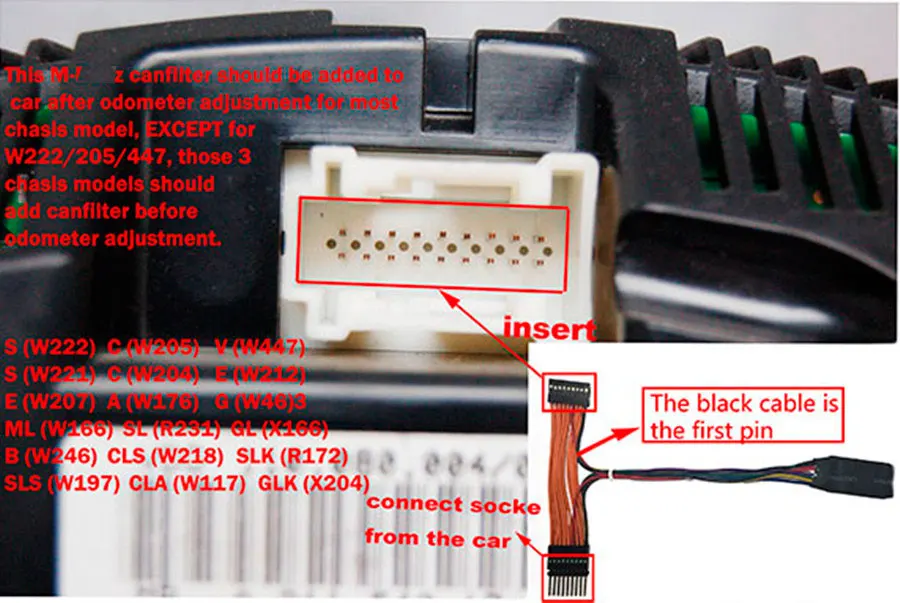

Yanhua MB CAN Filter 18 In 1 (10)



2.For B-MW Support Model:

   For 1 series F2X, 3 series F3X, for X5 etc., FEM mileage adjustment( no need to remove FEM, connect dirrectly to instrument panel);

   For 5 series F10,7 series F01/02 etc., CAS4 Fxx chasis.( F01,F02,F07,F18,F10,F20,F25,X3 etc., applicable for 9S12 XEP series 5M48H/1N35H).


This filer is universal for multiple car models, small and convenient, easy operated, which with stable performance and reliability.

New style: 222/205/217
Old style: 166/212/463
CHECK the car modele correctly before adjust.
Old style W166 short circuit to GND
New style W222 short circuit to GND
Black wire connect to plug 1


forBenz / forBMW Universal filter --- Diagram for BMW
Below is wiring illustration:
Black  --------- GND                   Red --------- +12V      White  --------- +5V
Purple  -------- L1(CAN_L1)    Green --------- H1(CAN_H1)
Yellow --------- L2(CAN_L2)    Blue --------- H2(CAN_H1)
NOTICE! Please connect the 2 forBMW dot together(short circuit) BEFORE connect to car!
Package includeds:
