Humidity chamber design

Posted by Ye Tong
1
Career Development
May 16, 2016
193 Views
Product Description



          Constant Temperature Humidity Chamber can perform Temperature & Humidity, High Temperature, Low Temperature and Temperature Cycle Testing. Humidity testing will accelerate and expose corrosion problems in your product. High Temperature and Low Temperature testing are meant to test the durability of your product for long term storage or operation in these environments.





Cooling system and heating system

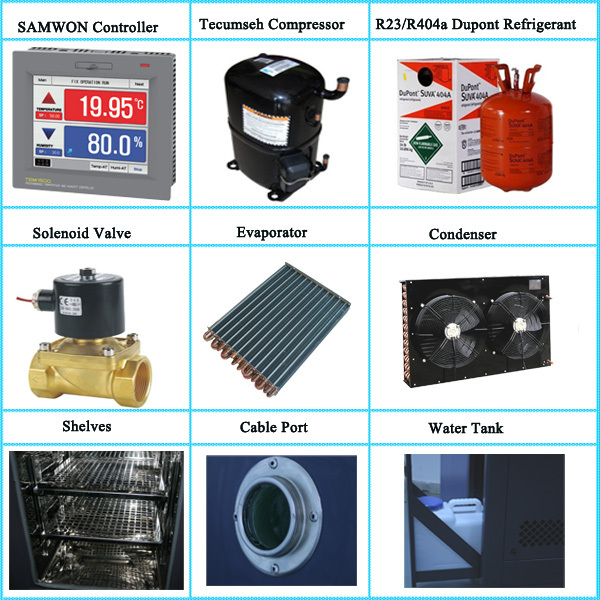

  1. Compressor:Tecumseh of France, all closed.
  2. Refrigerant:R23 / R404A Environmental protection refrigerant (DuPont of USA)
  3. Condenser: Air Force Taiwan Kuwait shell and tube condenser
  4. Evaporator: Taiwan Kuwait force fins multi zone automatic load capacity adjustment
  5. Expansion of the system: capacity control of cooling system
  6. Refrigeration Service parts: all imported electromagnetic valve, the pressure controller (Danfoss), the oil separator (Danfoss) and other cooling accessories



Complied Standards

  • GB10485-89 GB4208-93 GB/T4942 and
  • Corresponding IEC ISO & ASTM standards

Technical parameters



                                                                                  Temperature humidity chamber technical parameters
ModelYTH-080YTH-150YTH-225YTH-408YTH-800YTH-1000
Internal dimensions W*H*D(mm)400*500*400500*600*500500*750*600600*750*6001000*1000*8001000*1000*1000
External dimensions W*H*D(mm)900*1400*9501000*1500*10501000*1650*11501100*1750*13501500*1900*13501500*1900*1550
Temperature Range -73℃~+180℃( 0℃,-20℃,-40℃,-60℃, -73℃)

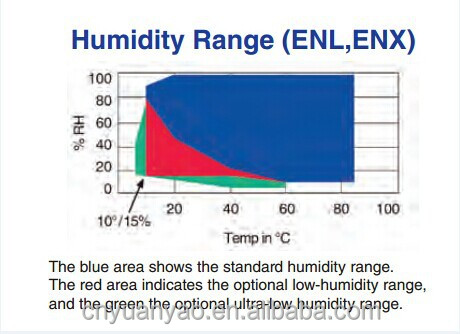

Humidity    Range 20%-98%RH( 10%RH-98% OR 5%TH-98%)
Temp.&humi. fluctuation±0.2℃,±0.5%RH
Temp.&Humi.Resorlution0.01℃,0.1%RH
Temp.&Humi.Uniformity±1.5℃,±2.5%RH (RH ≤75%),±4%RH ( RH>75%) (tested with the empry chamber, 30 minutes after stabilization

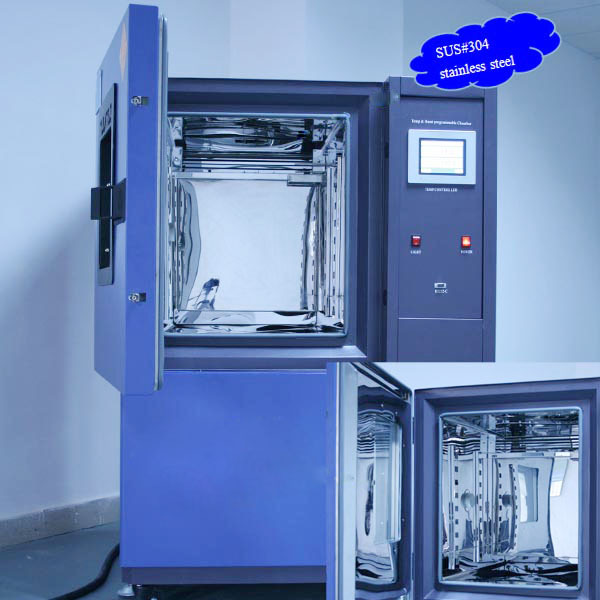

Material Inner chamber with SUS#304 stainless steel plate
Exterior chamber with Stainless steel plate+ Power Coated
Heating systemSUS#stainless steel high-speed heater
Humidifying systemSurface evaporating system
Dehumidifying systemADP critical dew point cooling/dehumidifying method
Air cicultation systemCooling fan
Refrigeration systemImported Tecumseh compressor +fin type evaporator + air(water type)cooling system
Controlling systemDigital electronic indicators +S.S.R.with PID automatic calculation capability
Other ComponentsVaccum glass inspection window, cable port(50mm), control status indicator lights,
chamber lamp, loading shelves(2pcs for free)
Safty DevicesOverheating circuit-breaker,compressor overload protection,control system
overload protection,humidifying system overheating protection, beakdown indicator light
Power SupplyAC1φ110,1φ220V;3φ380V 60/50Hz(adjustable)
CostomizationNo-standard or special requirement are all welcome
