How to Replace Battery for Volvo XC90 2003

This instruction is show you guide on how to replace battery for Volvo XC90 2003. Hope it help.

12.2020 Volvo PTT 2.7.116+Devtool+ACPI Plus 2020/11/04 Installation & Activation Service

1.Switch off the ignition.

2. Wait at least 5 minutes after switching off the ignition before disconnecting the battery so that

all information in the vehicle's electrical system can be stored in the control modules.

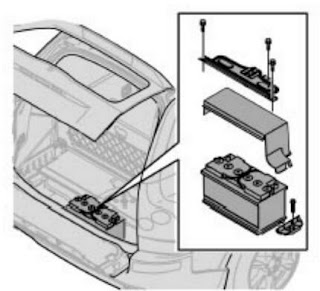

3. Remove the retaining bracket and unscrew the cover over the battery. Wait at least 5 minutes after switching off the ignition before disconnecting the battery so that all information in the vehicle's electrical system can be stored in the control modules.

4. Disconnect the negative (ground) cable first.

5. Disconnect the positive cable and pull the ventilation hose (see next page) from the battery.

6. Lift out the old battery and put a new battery into place.

7. Connect the positive cable first.

8. Connect the negative (ground) cable.

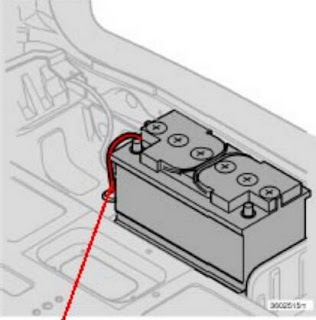

9. Be sure that the ventilation hose (see below) is securely connected to the battery and that the other end of the hose is properly routed through the ventilation opening in the floor of the battery compartment.

10. Reinstall the cover and retaining bracket and screw it securely in place.

Volvo PTT 2.7.116+ACPI Plus 2020/11/04+Devtool 100% Work

WARNING!

- Never expose the battery to open flame or electric spark.

- Do not smoke near the battery.

- Battery fluid contains sulfuric acid. Do not allow battery fluid to contact eyes, skin, fabrics or

painted surfaces. If contact occurs, flush the affected area immediately with water. Obtain medical help immediately if eyes are affected.
