How to Refuel for Honda Civic 2015

by Ji Xiaohui vehiclerepair22

There are two methods of refueling:

Fast filling

It takes about three to five minutes to fill up the fuel tank. This method is usually available at stations designed to refuel natural gas vehicles. During fast filling, the natural gas is warmed, causing the pressure in the tank to rise and reduces the amount of fuel you can put in.

Slow filling

It takes about an hour and a half per GGE (Gasoline Gallon Equivalent) to fill up the fuel tank. This method can be done using a vehicle refueling appliance.

Honda HDS 3.104.002+I-HDS+ECU Rewrite+Immobilizer Tool

Procedure:

-Stop your vehicle with the service station pump on the left side of the vehicle in the rear.

-Turn off the engine.

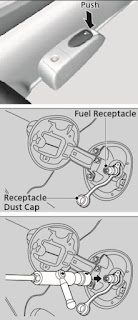

-Push on the fuel receptacle lid release handle at the foot of the driver’s seat. The fuel receptacle lid opens.

-Remove the receptacle dust cap from the fuel receptacle. Clean off any dirt or debris around the fuel receptacle.

-Securely connect the CNG fill nozzle to the fuel receptacle.

Notice:Using fast fill equipment at temperature below -4°F (-20°C) may damage the fuel system, potentially causing a leak.

Always observe all safety recommendations and operating instructions on the refueling equipment.

Use a fuel filler nozzle that complies with ANSI/AGA NGV-1-2008 standards.

The CNG filler nozzle mechanism may vary by service station. Each nozzle standard has different maximum pressure:

P24 • － 2,400 psi (16,500 kPa)

P30 • － 3,000 psi (20,700 kPa)

P36 • － 3,600 psi (24,800 kPa)

The refueling steps shown in this manual are the typical fast fill refueling procedure. You may need to go through different steps at a station with slow fill equipment or other types of equipment. Always follow the instructions provided on site.

How to Install Honda HDS Software for DIY

-Turn the lever until the arrows on the nozzle point to each other, then follow the instructions on the refueling station to begin refueling. While refueling, you may hear a chattering sound. This is normal.

-Refueling will stop automatically when the tank is full. Follow the instructions on the refueling station to turn it off.

-Disconnect the CNG fill nozzle from the fuel receptacle by slowly turning the lever on the nozzle 180 degrees. You may hear a brief hissing sound as a small amount of gas escapes, and may detect a slight gas odor. This is normal.

-After filling, replace the receptacle dust cap on the fuel receptacle securely. Shut the fuel receptacle lid by hand.

If you hear or see fuel/vapor leaking from the nozzle-receptacle connection, stop refueling immediately. Turn off the refueling station, remove the nozzle, reconnect it to the receptacle, and begin refueling again. Dirt or debris adhered to the inside of the fuel receptacle can cause a gas leak. Remove dirt or debris from the CNG filler nozzle with a clean, dry rag.

If it continues to leak, have an authorized CNG dealer inspect the sealing O-ring in the fuel receptacle. It may be missing, damaged, or worn.

If you are not sure how to operate the refueling station, ask for assistance.
