How to Check Engine Oil Level for Paccar

by Ji Xiaohui vehiclerepair22

This instruction will show you guide on how to check engine oil level for Paccar.

Preparation:

Paccar ESA Electronic Service Analyst v5.2.2.1 Free Download

2020 Paccar ESA Electronic Service Analyst 5.3.1+KG+Instruction+SW Files

To check engine oil level, park vehicle on level ground and wait 15 minutes after shutting off engine. After the engine is shut off it will take at least 15 minutes for all the engine oil to return to the sump.

Note: It takes approximately 15 minutes for all the oil to run into the sump when the engine is ‘warm.’ If the level is checked immediately after switching off the engine, the dipstick will show a low oil level.

Make sure that the vehicle suspension is sitting flat, both lengthwise and crosswise. Check this carefully on a vehicle with air suspension.

Engine coolant should be at or above the operating temperature of 180°F (82°C). This procedure should be followed as part of routine maintenance checks.

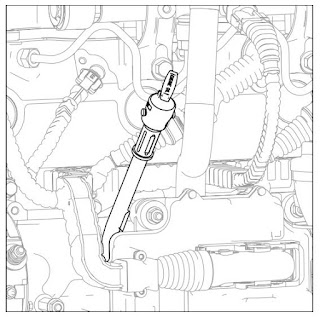

1. Twist the dipstick handle to unlock it, then pull the dipstick out of the holder.
