Detailed Description:
Chamber Size | 4"x4"x4" /100x100x100mm(WxHxD) |
Power | 700 W Max. |
Voltage | AC 110V Single Phase, 50/60 Hz |
Max. Temperature | 1200 °C (< 1 hour) |
Continuous work temp. | 1100 °C |
Max. Heating Rate | 30 °C /min |
Temperature controller | · PID automatic control and auto-tune function. · 30 programmable segments for precise control. · Built in protection for over-heated and broken Thermal couple. · larger digital control panel (48 x 96 mm) for easy operation. |
Temperature Accuracy | +/- 1 °C |
Heating Element | Fe-Cr-Al Alloy doped by Mo |
Thermal Couple | K type |
Dimension | 200 x 230 x 360 mm |
Net Weight | about 31 Kg |
Shipping package size after crating | 14" x14" x 18" |
Shipping weight | 30 lbs |

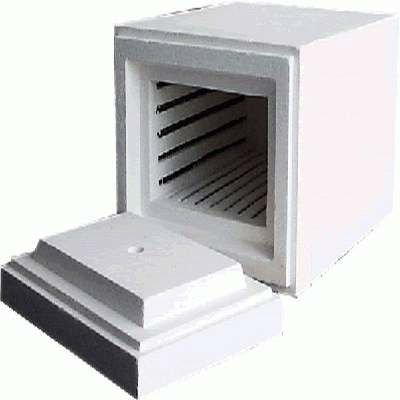

3.Features of ST-1200Mini Muffle furnace:
1.Vent port installed on the top for gas flow. ( gas outlet)
3.Three sides resistance wire coil for fast and uniform heating.
4.Heavy duty double layer structure with cooling fan. Lower teperature in outside case.
5.0.5" diameter observation window made of quartz galss allow user to see insider chamber during heating operation.
6.K type thermocouple installed for immediate use.
7.Temperature controll unit can be separated from furnace , and make moving at easy.
8.PID automatic control via current limiting phase angle fired the resistor , e.g. SCR ( Silicon Controlled Rectifier)
4.Furnace structure:
1.High purity fibrous alumina insulation for maximum energy saving - 30% less power consumption than other brand
2.Slide down door for loading and take off sample at easy and safe. Power will shut down when door is opened.
3.Two 8 mm diameter tube connectors can be installed to the gas inlet and outlet ports on the back of furnace by customers.
5.Applications:
1.Gravimetric analysis;
2.Sintering or Roasting or Forging or calcining;
3.Quantitative analysis;
4.Heat treating or Preheating;
5.Quenching or Hardening or Austempering
6.Annealing or Tempering or Normalizing
7.Stress Relieving
8.Temperature measurement
Product Induction
Characteristics, function and service life of systems or components are influenced by varying thermal and climatic conditions during transport, storage and use. For this reason, tests have to be carried out in order to safeguard and optimise the quality of the product. The temperature and climate test chambers produced by Envsin Umwelttechnik set standards with regard to ease of operation, performance and equipment. Product Feature
2. Intelligent 32 bit measuring and control system with colorful screen. Interface USB and Ethernet, APP mobility management.
3. Programmable power outlet with 4-CH. ON/OFF output control, to ensure safety.
4. Patented air circulation system improves test's accuracy.
5. Independent thermal protector and sensors keep test specimen off over temperature, breezeless and smog.
6. Network video monitoring is synchronized with test data.
7. Patent: Self-developed humidity chamber structure without condensation (ESC series)
8. Automatic water supply device is equipped with ultrapure filtration system and water shortage reminder
9. Strong control ability in ultra-low humidity range: 20ºC/10%RH
10. Environmental servo refrigerant flow control for energy saving and quick heat-up/cool-down rate
11. Without defrosting, during operating in low temperature.
12. Uniquely operation mode makes testing zone's temperature back to R.T after test, which protects sample status.
13. Automatic reminder of maintenance time of equipments and software of fault records.
14. Optional remote service function and video CD of equipment operation.
