DtiCorp.com Is Introducing The New Honeywell LG1237CD04 Pressure Transducer

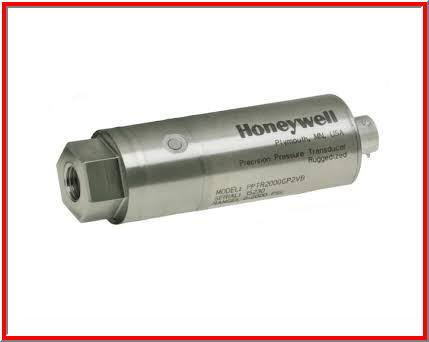

Popular online HVAC retailer DtiCorp.com is introducing the brand new Honeywell LG1237CD04 Precision Pressure Transducer-Ruggedized. Honeywell's PPTR (Precision Pressure Transducer-Ruggedized) offers a rugged, smart pressure transducer for use in harsh environments. It combines proven silicon sensor technology with microprocessor-based signal conditioning to provide an ext remely smart pressure transducer. Designed with a hermetically sealed, stainless steel construction, the PPTR operates in severe vibration, thermal and mechanical shock environments. The PPTR has many software features that support a wide range of applications.



Applications:

- Engine Test Stands

- Flight Testing

- Water Depth

- Unmanned Underwater Vehicles

- Instrumentation and Analytical Equipment

- Process Control

- Research and Development



Features and benefits:

- ISO-9001, ISO-14001

- High Accuracy: ±0.10% FS typical accuracy from -40 to 85ºC

- Smart, Digital Sensing and Control

- Versatile and Configurable

- User Selectable Software Features: Baud Rate, Parity Setting, Continuous Broadcast, ASCII or Binary Output, Sensor Temperature Output (C or F), Deadband, Sensitivity, Tare Value, Configurable Analog Output

- Simplifies System Design - No additional signal compensation needed to gain the benefits of a very accurate sensor.

- Efficient Data Acquisition - Connect up to 89 units on a multidrop bus using built - in RS - 485 capability.

- Easy Interface - Directly connects to PC via communication ports.

- Closes the Loop - Smart PPTR makes control decisions.

- Works with existing and new systems. All units have 0 - 5V analog and either RS - 232 or RS - 485 digital outputs.

- Isolation diaphragms handle most media - harsh gases or liquids.

- Rugged Design - Operates in severe vibration, thermal, and mechanical shock environments.

- Optimizes Output - User - configurable pressure units, sampling, update rate.

- Flags Problems - Internal diagnostics set flags, provide alarms.



About Us: DtiCorp.Com carries more than 35,000 HVAC products, including industrial, commercial and residential parts and equipment from Honeywell, Johnson Controls, Robertshaw, Jandy, Armstrong and more. Our online catalog is easy to navigate and search, and all products have a picture and a description. If a customer has any questions about a product, they can call and speak with one of our product experts. Our mission is to offer the best prices anywhere to our customers.

More information about Honeywell LG1237CD04:



http://www.dticorp.com/catalog/honeywell-lg1237cd04-pressure-transducer-p-1142.html
