A Complete Insider To The Science Of Measuring Torque

by Datum Electronics World's Leading Torque Sensor Manufacturers
A torque transducers is an electronic device, which is used to measure and record torque on a given rotating object or system. Some of the examples of such systems are bicycle crank, motor engine, rotor, gearbox, and transmission.

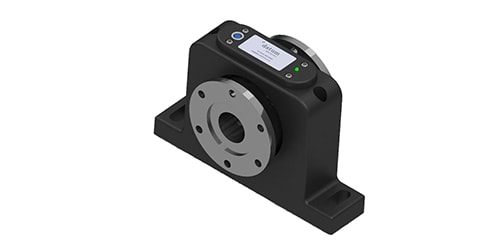

Torque Transducers
A torque motion is of two types, one is the static torque, while the other one is the dynamic torque.

For the former one, the torque has no rotation and no angular acceleration, thus easy to measure. The torque exerted by the spring of the clock is one such example of a static torque.

Whereas, the dynamic torque is completely the opposite of the static torque, therefore, tough to measure. For keeping a tap on this type of torque special kind of equipment or device is required, and this is typical for industrial means. Technically speaking, transfer of some effect-be it hydraulic, electric, or magnetic-is required from the shaft to obtain the value of torque on a static system.

How to Measure Dynamic Torque?

Technically speaking, transfer of some effect-be it hydraulic, electric, or magnetic-is required from the shaft to obtain the value of torque on a static system. One easy way to achieve the transfer of effect is by is by attaching the shaft with a sequence of permanent magnetic to generate the acceleration force. The magnetic characteristics will vary in lime with the externally applied torque, thus, the torque can be measured by non-contact transducers. Such type of torque transducers find they extensive appellations in auto-mobiles, hovercraft, race cars, and air-crafts.

The popular torque transducers make use of a strain gauge, applied to the axle or the rotating shaft. Here, in this approach, a source of power is required to power the bridge of strain gauge, as well a means to accept the signals given out by the rotating shaft. This can be done by simply employing a rotary transformer, slip rings, or the wireless telemetry. Today, the advanced transducers are available in the market, incorporates conditioning electronic and an A/D converter to the rotator shaft for precise readings. Here, the stator electronics will record the digital signals can send it for its conversation in analogue output for a variety of applications.

Another means to measure a torque on a  dynamic system is via the twisted angle approach. In this methodology, the angle of twist, created by an applied torque is measured by two position sensors, this robbing the reading of the phase angle. This strategy of torque measurement is followed by the Allison T56 turboprop engine.

How to Find the Right Product for Your Purpose?

Are you considering buying a torque transducers? Do a bit of background check about the brand, you are planning to buy. Take a look at every inch of the product, taking into account all the features of that particular device. The customer feedback posted on top product reviews websites will help you to come across the shortcoming highs of your prospective device. And, lastly, consult your known, those who have recently purchased such device.
