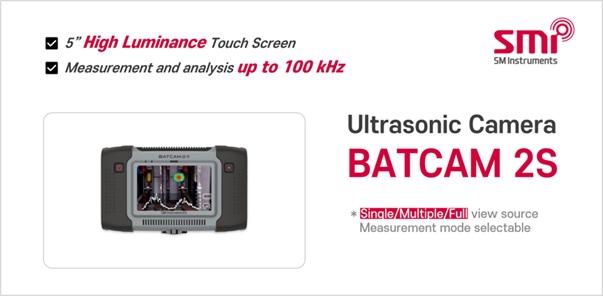

SM Instruments BATCAM 2S

Advanced Acoustic Imaging Camera with GIS and Cloud AI Analysis

The BATCAM 2S is the next-generation acoustic imaging camera from SM Instruments, now enhanced with GIS (Geographic Information System) and cloud-based AI analysis functions. Designed to improve user efficiency and field diagnostics, it offers a powerful solution for detecting electrical discharges, gas leaks, and a wide range of abnormal noise sources, including BSR (Buzz, Squeak, and Rattle).

With a significant boost in sampling rate, display performance, and user interface, BATCAM 2S delivers precise detection in ultrasonic and high-frequency bands ranging from 2 kHz to 100 kHz. Featuring 112 digital MEMS microphones, it ensures highly sensitive measurements in complex environments.

Which features make the SM Instruments BATCAM 2S an advanced solution for acoustic imaging and data analysis?

Ø  Compact and Lightweight Design: Easy to carry and operate in the field.

Ø  GPS Location Tagging: Save measurement locations via connected mobile app.

Ø  Cloud-Based AI Analysis: Leverages AI for advanced data interpretation and reporting.

Ø  Real-Time Visualization: Identifies and displays sound sources in real time.

Ø  Distance Sensor & Auto LCD Brightness: Enhances usability in various lighting conditions.

Hardware Specifications:

Ø  112 Digital MEMS Microphones

Ø  Measurement Range: 2 kHz – 100 kHz

Ø  Display: 5” High-Luminance Touch Screen

Ø  Connectivity: USB-C (Data & Charging), HDMI and Audio Outputs

Ø  Battery Life: Up to 4 hours of continuous use

Ø  Automatic LCD Brightness Adjustment

Ø  Digital Zoom Capability

Ø  Built-in Distance Sensor

Software Capabilities:

Ø  Real-time sound pressure visualization

Ø  Selectable measurement modes: Single / Multiple / Full view

Ø  PRPD Analysis and Partial Discharge Measurement

Ø  Gas/Air Leak Estimation: Detect leaks and calculate loss in real time

Ø  Data Storage: Save images, videos, and audio in JPG, MP4, and WAV formats

Ø  Microphone Self-Test Function

Ø  Supports BATCAM Zone (Web/App Integration)

Ø  Automatic Power-Off Feature

The BATCAM 2S is ideal for industries requiring advanced acoustic diagnostics such as power utilities, manufacturing, automotive, and facility maintenance. It simplifies complex tasks with smart features, helping users locate and analyze problems quickly and accurately.

If you are looking for an ultrasonic gas detector, you can find them at SM Instruments.
