Wireless IP Cameras NVR Security Kit

by Sarah Tan Sales Manager

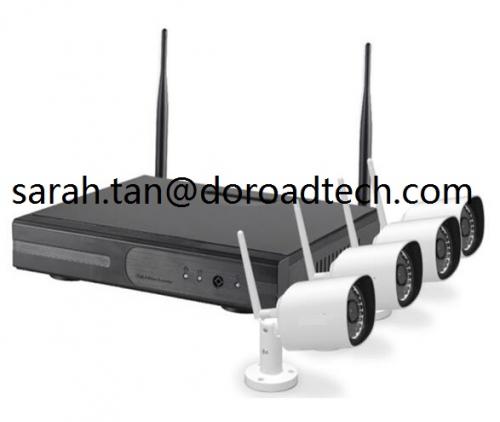

CCTV Home Video Surveillance 4CH WIFI IP Cameras 1080P/960P/720P Wireless NVR with WIFI monitor

Key Features:

1080P/960P/720P Wireless Network Video Recorde
Built-in WIFI module with high-performance and high stability
Free Cloud Service, easy to achieve a variety of network
Automatically Connection between NVR and IPC
Support video preview/recording/playback/backup
Support the mixed use of wireless and wire, support different scene
Support Android/IOS/PC remote
Mobile surveillance supported,Including iPhone, iPad, Android
1HDD Max 4TB per HDD

Specification


Model NO.	DR-W7604D
System
Operating system	embedded Linux
System resources	Simultaneously multi-channel real-time recording, playback, network operation, USB backup
Video
Decode	H.264(High Profile)
Monitor quality	VGA, HDMI: HD
Video input	D1/960H/720P/960P/1080P
HDMI Output	1CH, Resolution: 1024x768, 1280x1024, 1366x768, 1440x900, 1920x1080
VGA  Output	1CH, Resolution: 1024x768, 1280x1024, 1366x768, 1440x900, 1920x1080
Playback quality	4CH
Encode ability	4*1080P
Multi-mode input	Network:  4*1080P; 4*720P
Audio
Audio interface	3.5mm headphone jack(Optional)
Record & Playback
Record mode	manual>alarm>motion detection>timing
Local Playback	4CH(local input mode)
Search mode	Search by time, calendar, event, channel
Storage & backup
Storage	1 SATA
Video storage	4TB for each HDD
External Interface
Audio interface	3.5mm headphone jack(Optional)
Video output	1CH VGA, 1CH HDMI
Network interface	1 RJ45 10M/100M self-adaption, 2 WIFI connector
PTZ control	-
USB	2* USB 2.0 ports
HDD	1*SATA ports
ELECTRICAL
Power Consumption	<15W (without HDD)
Adapter Requirement	DC12V 3A
General
Working Temperature	-10℃  ~  +50℃
Storage Temperature	0℃  ~ +55℃
Working Humidity	Less than 90% (no condensation)
Working Environment	86kpa—106kpa
Dimensions	300*228*48mm
Net Weight	1.75kg
Gross Weight	2.50kg

Contact: Sarah
E-mail: sarah.tan@doroadtech.com
Skype: sarah88132280
MSN: sarah.doroadtech@hotmail.com
Website: www.dtsecuritycctv.com
www.doroadtech.com
Mobile/WhatsApp/Wechat: 86-13434788762
TEL: 86-755-26655864
FAX: 86-755-33566585
