Some Useful Knowledge of Stepper Motors for Beginers

by Curry Lee Führende Dentalgeräte und Zahnarzt

Stepper motors consist of a rotor with permanent magnets and a stationary stator that carries the windings. When current runs through the stator windings, it generates a magnetic flux distribution that interacts with the magnetic field distribution of the rotor to apply a turning force. Stepper motors feature very high pole counts, typically 50 or more. The stepper motor driver energizes each pole in sequence so that the rotor turns in a series of increments, or steps. Because of the very high pole count, the motion appears to be continuous.

Stepper motors for sale have a number of positive attributes. Because they generate incremental motion, they are generally run open-loop, eliminating the cost and complexity of an encoder or resolver. The high pole count allows them to generate very high torque at zero speed. They are compact and generally economical (Fig. 1).

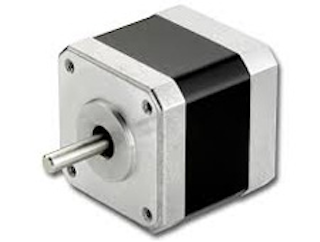

Www Machinedesign Com Sites Machinedesign com Files Servo Figure 1

Stepper motors deliver good performance at an economical price point for applications requiring low speed, acceleration, and accuracy. (Courtesy of Kollmorgen)

On the downside, stepper motors have speed limitations. They generally run best at 1,200 RPM or lower. Although they generate high torque at zero speed, torque falls off as speed increases (Fig. 2). A motor that generates 100 ounce inches at zero speed might only deliver 50 ounce inches at 500 RPM, for example, and just 10 ounce inches at 1,000 RPM.

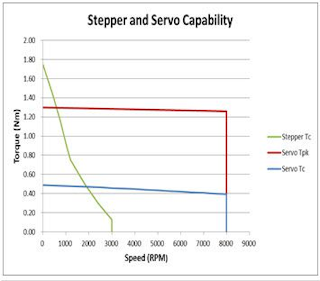

Www Machinedesign Com Sites Machinedesign com Files Servo Figure 2

In theory, a gearbox could be used to increase torque, but this is where the low speed of stepper motors becomes a problem. Adding a 10:1 gear reducer to a 1,200 RPM stepper motor might boost the torque by an order of magnitude but it will also drop the speed to 120 RPM. If the motor is being used to drive a ball-screw actuator or similar, it probably will not deliver sufficient speed to satisfy the needs of the application.

Stepper motors generally are not available in frame sizes larger than NEMA 34, with most applications falling in the NEMA17 or NEMA 23 motor sizes. As a result, it is unusual to find stepper motors capable of producing more than 1,000 to 2,000 ounce inches of torque.

As these torque versus speed curves show, stepper motors deliver peak torque at zero speed with torque falling off as speed increases (green). In contrast, servo-motor torque remains roughly constant across the operating range (blue and red). (Courtesy of Kollmorgen)

Stepper motors also have performance limitations. You can think of a stepper motor as a spring-mass system. The motor needs to break friction to begin turning and move the load, at which point the rotor is not fully controlled. As a result, a command to advance by five steps may only result in the motor turning four steps—or six.

If the drive commands a motor to advance 200 steps, however, it will do so to within just a few steps, which at that point represents an error of a few percent. Although we command stepper motors with a resolution of typically between 25,000 and 50,000 counts per revolution, because the motor is a spring-mass system under load, our typical resolution is 2,000 to 6,000 counts per revolution. Still, at these resolutions, even a 200-step move corresponds to a fraction of a degree.

Adding an encoder will enable the system to accurately track movement, but it will not be able to overcome the basic physics of the motor. For applications requiring improved positioning accuracy and resolution, servo motors provide a better solution.
