2000mAh 18650 Rechargeable 3.7v li-ion battery

by Amrole Lee Hifactory manager

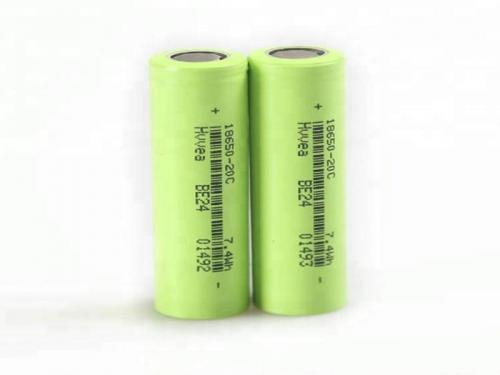

2000mAh 18650 3.7v li-ion battery
Model No. ICR18650-20C
Rated capacity 2000mAh
Rated Voltage 3.7V
Internal resistance ≤26
Charge upper limit voltage 4.2V
Cut-off discharge voltage 2.75V
Standard charging circuit 1C
Standard discharging circuit 3C
Cycle life ≥500-700 times
Weight ≤45g
Dimenssion 18.4 * 65.1mm
Operational temperature
0 ~ 45 ℃ for charging
-20 ~ 60 ℃ for discharging

2000mAh 3.7v li-ion battery

Do not insert 3.7v li-ion battery with the (+) and (-) reversed .;
Do not over-discharge / overcharge;
Removes battery if not in use for long period;
Do not dispose batteries in fire, heat or short circuit;
Do not submerge the battery in water.

Advantages of 3.7v li-ion battery


Lead-acid batteries are generally deep-charged and deep-discharged within 400 times, with memory and a life span of about two years. If you are using a maintenance-free lead-acid battery, it should be noted that the battery has less water loss, and it is generally not necessary to add distilled water during use. Lithium batteries are durable, consume slowly, charge and discharge more than 500 times, and have no memory. The general life span is 4-5 years.

Volume and quality:

Generally, the weight of the lead-acid battery pack is 16-30 kg, and the volume is relatively large; the lithium battery is generally 2-6 kg, and the volume is relatively small, so the riding is light and easy to carry. As far as quality is concerned, it is difficult to define whether the two are good or not, and consumers can purchase batteries produced by regular manufacturers according to their own needs.

In terms of price and warranty period:

At present, the mainstream battery in the market is 48 volts. If it is replaced, the lead-acid battery is about 700 yuan, and the warranty period is 1 year; the lithium battery is relatively expensive, requiring about 1,200 yuan, but the warranty period can be 3 years.
